Yoke 8-921 ROV Eye Sling Hook 15 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

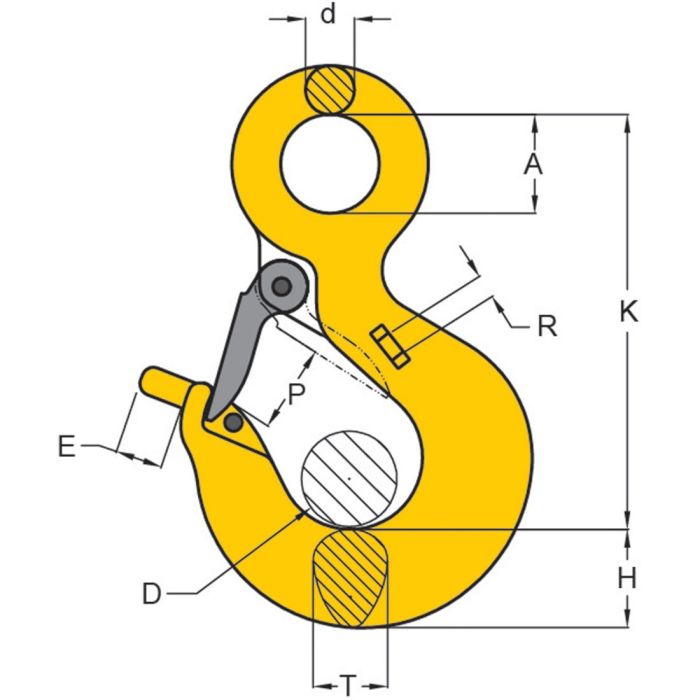

Specifications:

• Working Load Limit (WLL): 15.00 tons (33,069 lbs)
• (A): 72mm (2.83″)
• (D): 62mm (2.44″)
• (d): 32mm (1.26″)
• (E): 30mm (1.18″)
• (H): 66mm (2.60″)
• (K): 256mm (10.08″)
• (P): 62mm (2.44″)
• (R): 8mm (0.31″)
• (T): 56mm (2.20″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
