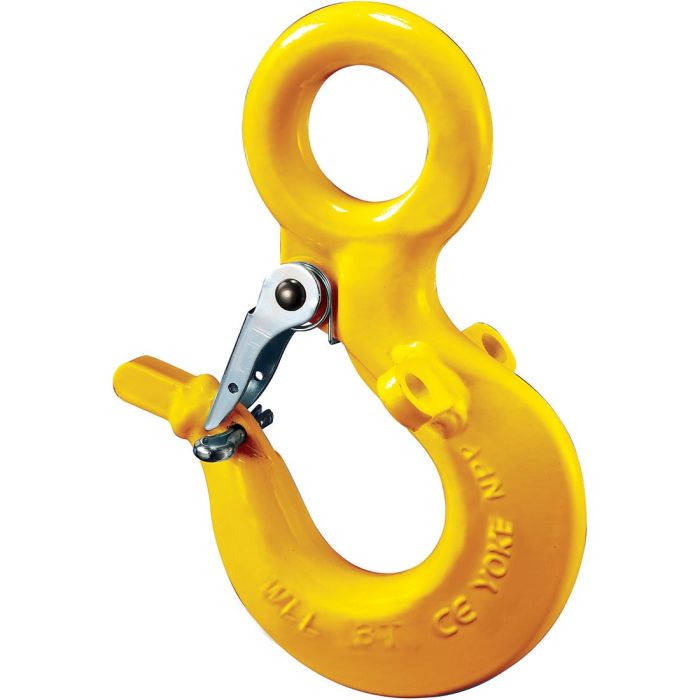

Yoke 8-921 ROV Eye Sling Hook 30 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

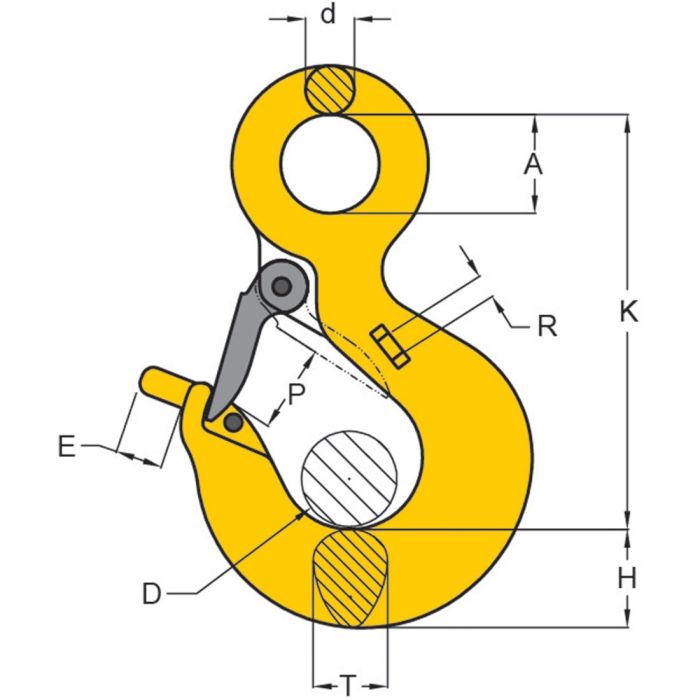

Specifications:

• Working Load Limit (WLL): 30.00 tons (66,138 lbs)
• (A): 90mm (3.54″)
• (D): 83mm (3.27″)
• (d): 45mm (1.77″)
• (E): 50mm (1.97″)
• (H): 92mm (3.62″)
• (K): 357mm (14.06″)
• (P): 83mm (3.27″)
• (R): 10mm (0.39″)
• (T): 76mm (2.99″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
