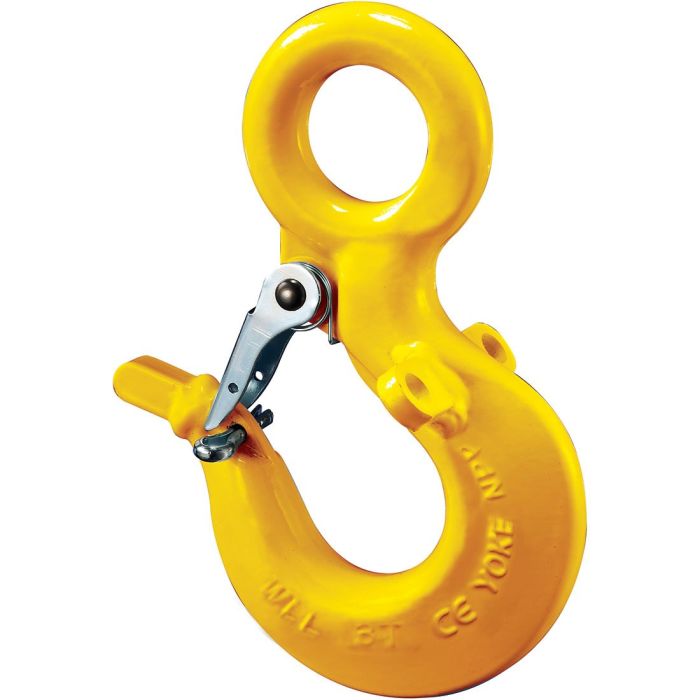

Yoke 8-921 ROV Eye Sling Hook 7 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Working Load Limit (WLL): 7.00 tons (15,432 lbs)
• (A): 51mm (2.01″)
• (D): 39mm (1.54″)
• (d): 24mm (0.94″)
• (E): 20mm (0.79″)
• (H): 46mm (1.81″)
• (K): 192mm (7.56″)
• (P): 39mm (1.54″)
• (R): 8mm (0.31″)
• (T): 37mm (1.46″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
