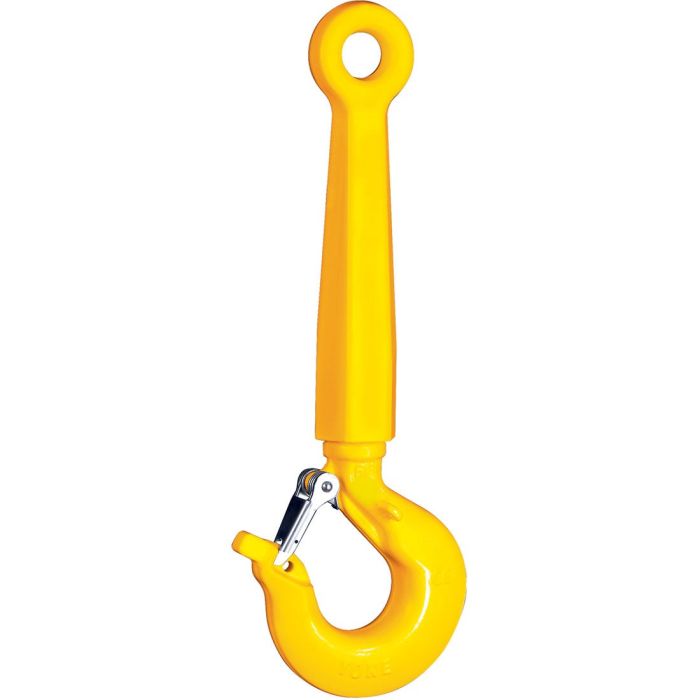

Yoke 8-931 Digital ROV Shank Hook 11.50 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

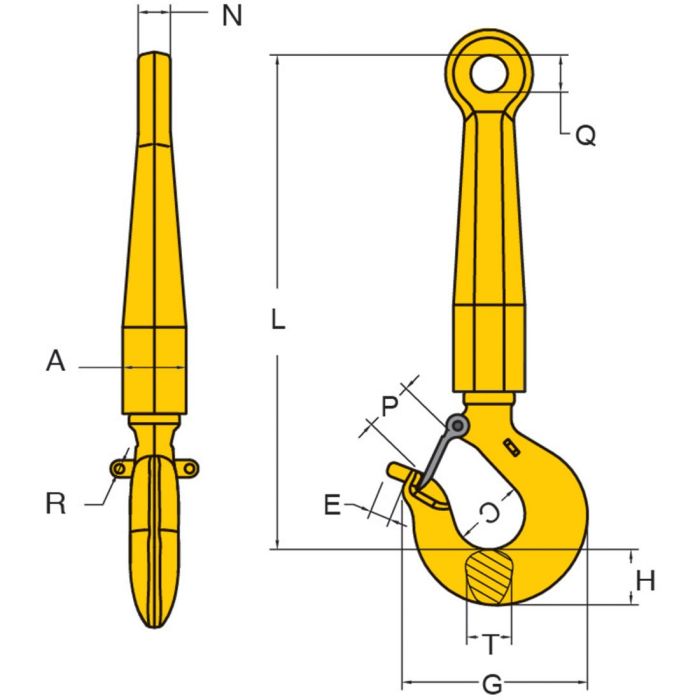

Specifications:

• Working Load Limit (WLL): 11.50 tons (25,353 lbs)
• (A): 65mm (2.56″)
• (C): 77mm (3.03″)
• (E): 30mm (1.18″)
• (G): 196mm (7.72″)
• (H): 56mm (2.20″)
• (L): 487mm (19.17″)
• (N): 40mm (1.57″)
• (P): 61mm (2.40″)
• (Q): 50mm (1.97″)
• (R): 8mm (0.31″)
• (T): 47mm (1.85″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
