Yoke 8-931 Digital ROV Shank Hook 22 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

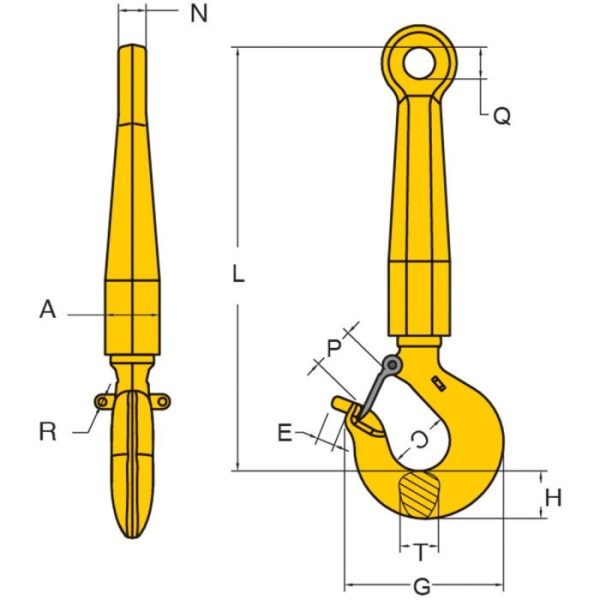

Specifications:

• Working Load Limit (WLL): 22.00 tons (48,501 lbs)
• (A): 85mm (3.35″)
• (C): 109mm (4.29″)
• (E): 50mm (1.97″)
• (G): 277mm (10.91″)
• (H): 76mm (2.99″)
• (L): 565mm (22.24″)
• (N): 52mm (2.05″)
• (P): 88mm (3.46″)
• (Q): 65mm (2.56″)
• (R): 10mm (0.39″)
• (T): 68mm (2.68″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
