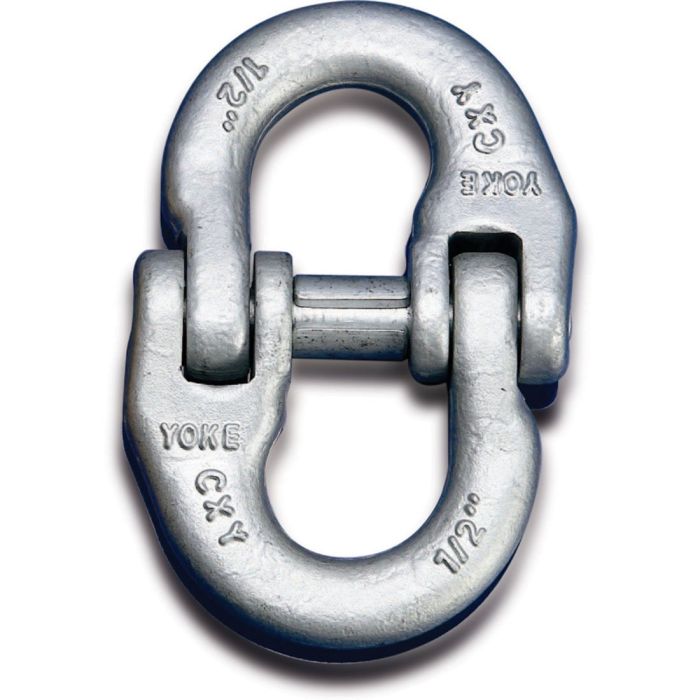

Yoke 8-M015 Grade 80 Connecting Link 1/2″ (WLL 11,684 lbs)

Yoke 8-M015 G-80 Connecting Link is designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 13mm (1/2″)
• Working Load Limit (WLL): 5.30 tons (11,684 lbs)
• (A): 30mm (1-3/16″)
• (B): 35mm (1-3/8″)
• (D): 16mm (5/8″)
• (K): 91mm (3-9/16″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
