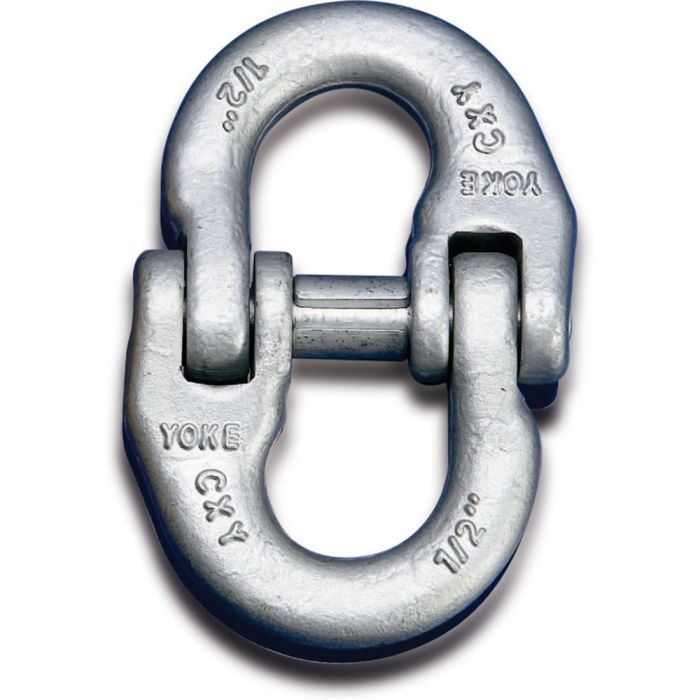

Yoke 8-M015 Grade 80 Connecting Link 3/4″ (WLL 27,558 lbs)

Yoke 8-M015 G-80 Connecting Link is designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 18mm – 20mm (3/4″)
• Working Load Limit (WLL): 12.50 tons (27,558 lbs)

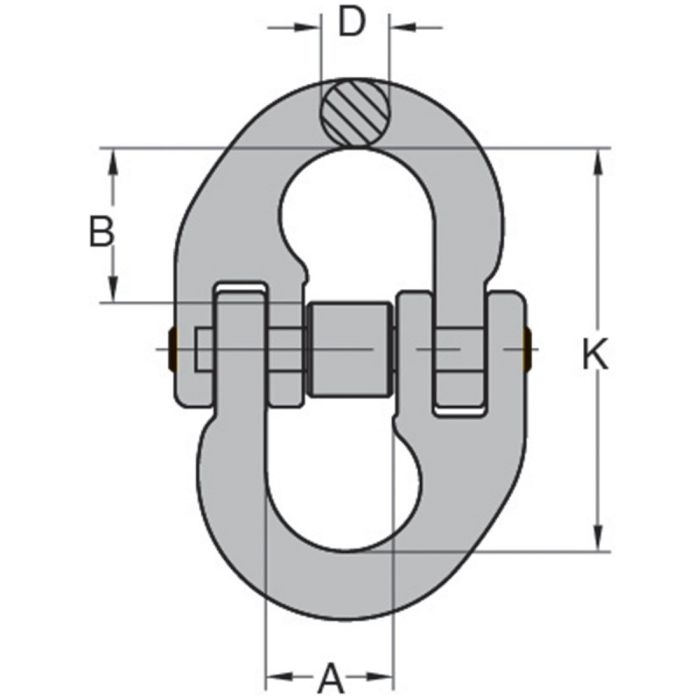

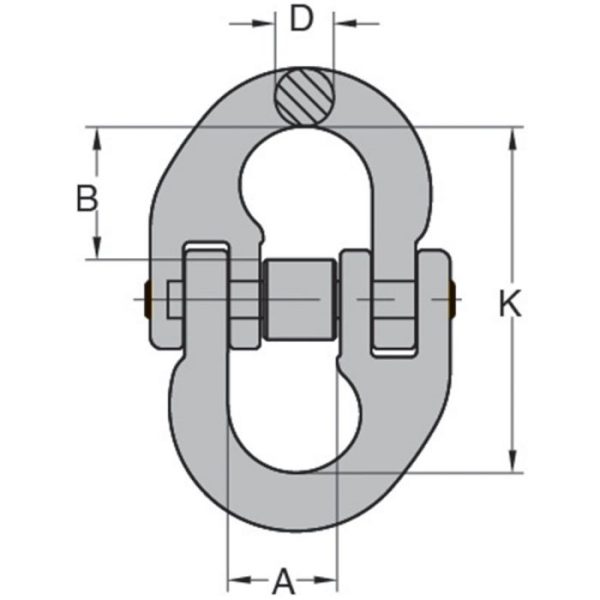

• (A): 42mm (1-5/8″)
• (B): 46mm (1-13/16″)
• (D): 22mm (7/8″)
• (K): 122mm (4-3/4″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
