Yoke 8-M015 Grade 80 Connecting Link 5/8″ (WLL 17,637 lbs)

Yoke 8-M015 G-80 Connecting Link is designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 16mm (5/8″)
• Working Load Limit (WLL): 8.00 tons (17,637 lbs)

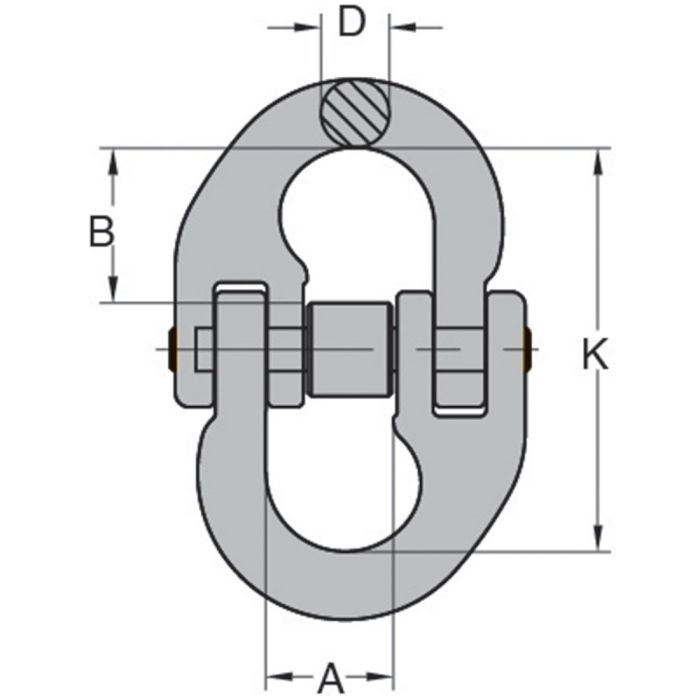

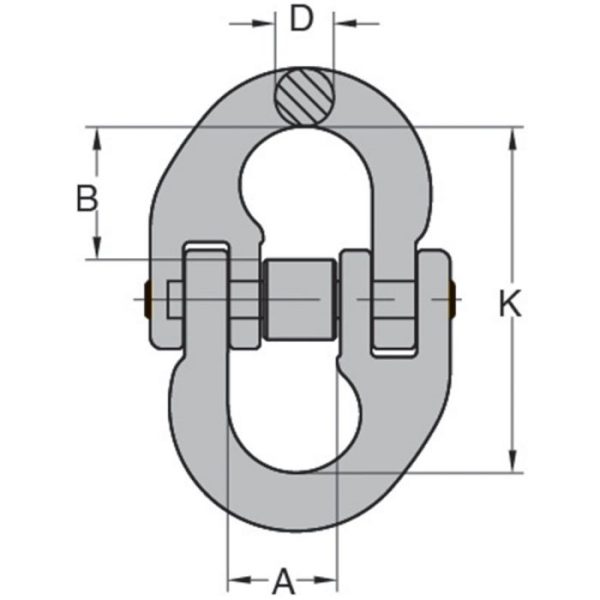

• (A): 36mm (1-7/16″)
• (B): 38mm (1-1/2″)
• (D): 19mm (3/4″)
• (K): 100mm (3-7/8″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
