Yoke 8-M015 Grade 80 Connecting Link 7/32″ (WLL 2469 lbs)

Yoke 8-M015 G-80 Connecting Link is designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 6mm (7/32″)
• Working Load Limit (WLL): 1.12 tons (2469 lbs)

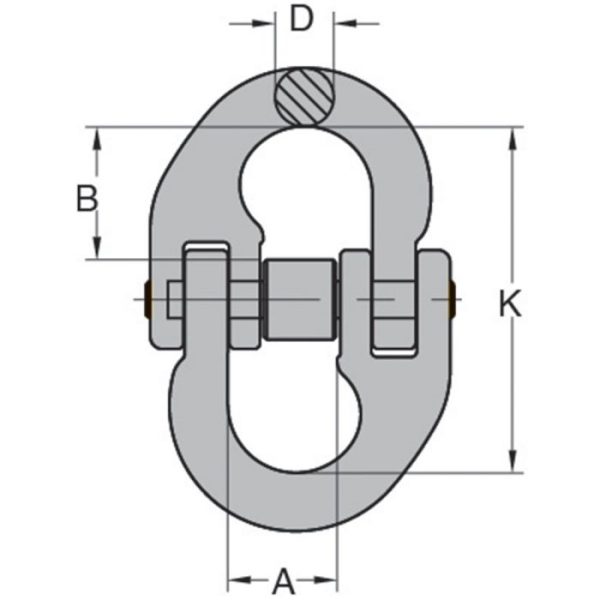

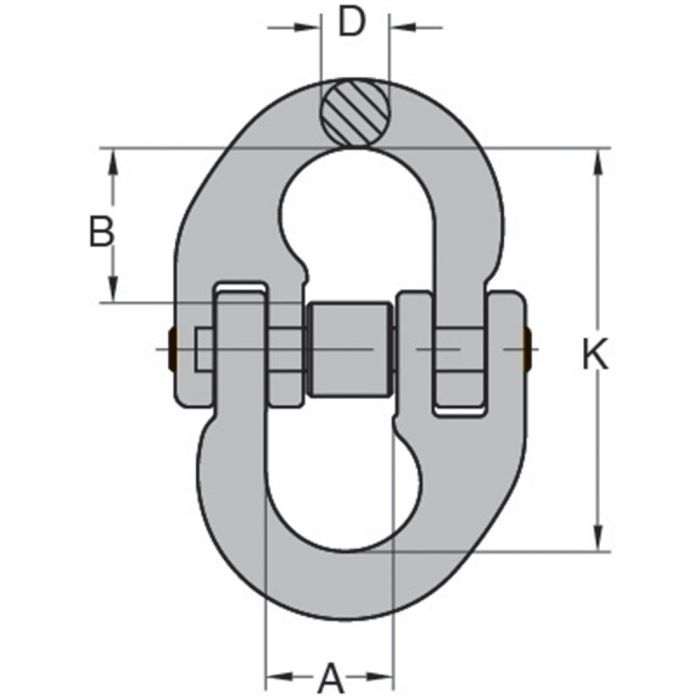

• (A): 15mm (9/16″)
• (B): 17mm (11/16″)
• (D): 7mm (1/4″)
• (K): 44mm (1-3/4″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
