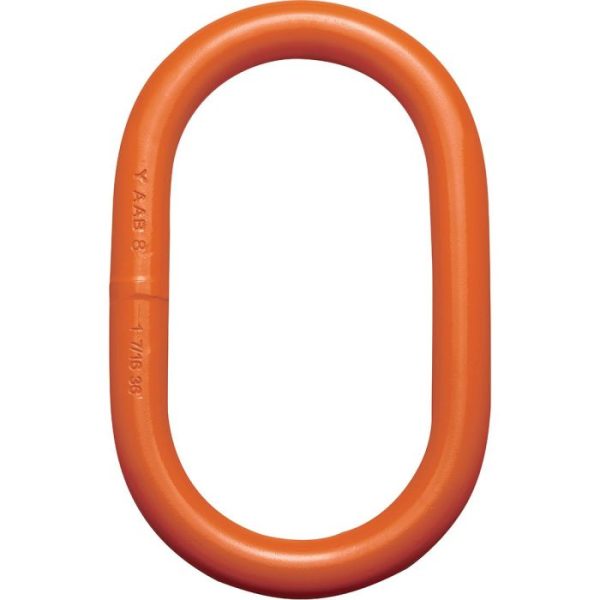

Yoke DA-001 Master Link 7/8″ (WLL 13,860 lbs)

The YOKE DA Series is manufactured to meet the requirements of DNV 2.7-1 for offshore container lifting, addressing the critical needs for Charpy impact, strength, and ductility. This series is designed, manufactured and tested for the operating in the offshore container industry.

Features:

• Welded alloy steel, quenched and tempered
• Tested and manufactured in accordance with DNV GL ST-2.7-1, EN 1677-4, ASME B30.26
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL)
• Proof Load tested to 2.5 times the Working Load Limit (WLL)
• Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section
• Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welded section

Specifications:

• Working Load Limit (Design Factor 5:1): 6.30 tons (13,860 lbs)
• Working Load Limit (Design Factor 4:1): 7.90 tons (17,325 lbs)

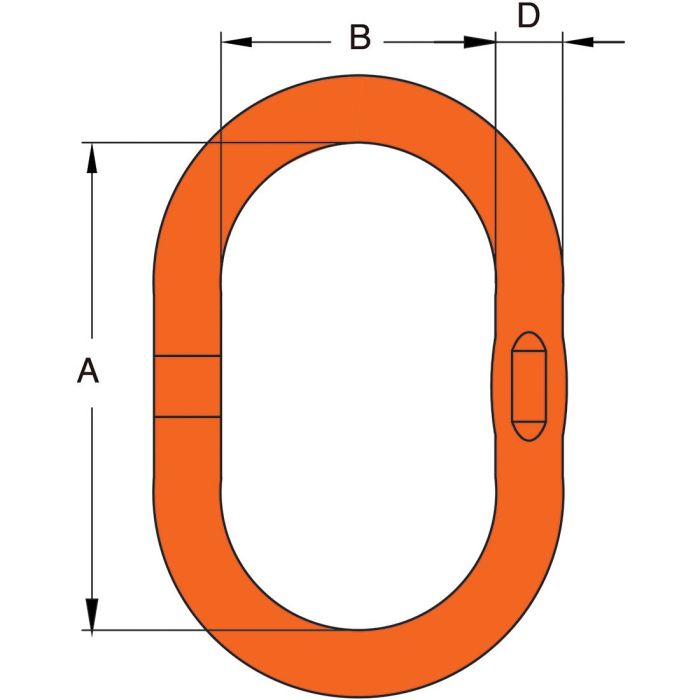

• Link Thickness (D): 22mm (7/8″)
• Inside Length (A): 270mm (10.63″)
• Inside Width (B): 140mm (5.51″)
