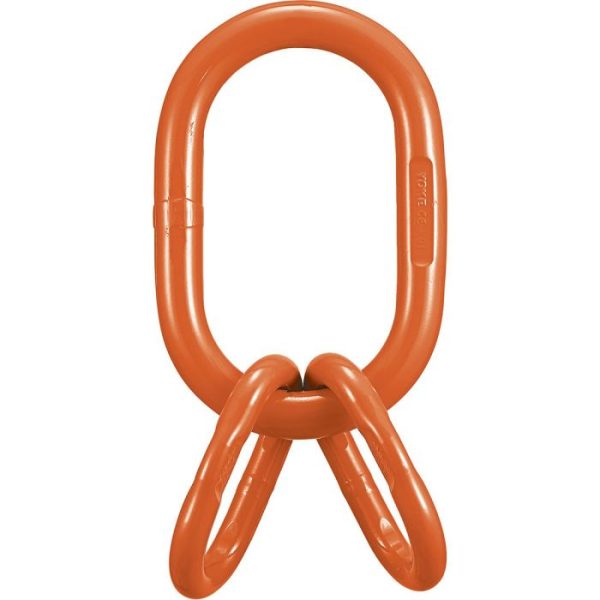

Yoke DA-007 Master Link Assembly 1-3/4″ (WLL 84,260 lbs)

The YOKE DA Series is manufactured to meet the requirements of DNV 2.7-1 for offshore container lifting, addressing the critical needs for Charpy impact, strength, and ductility. This series is designed, manufactured and tested for the operating in the offshore container industry.

Features:

• Welded alloy steel, quenched and tempered
• Tested and manufactured in accordance with DNV GL ST-2.7-1, EN 1677-4, ASME B30.26
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL)
• Proof Load tested to 2.5 times the Working Load Limit (WLL)
• Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section
• Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welded section

Specifications:

• Working Load Limit (Design Factor 5:1): 38.30 tons (84,260 lbs)
• Working Load Limit (Design Factor 4:1): 47.90 tons (105,325 lbs)
• Main Link Thickness (D): 45mm (1-3/4″)
• Inside Length (main link): 340mm (13.39″)
• Inside Width (main link): 180mm (7.09″)
• (d): 36mm (1-7/16″)
• (a): 285mm (11-1/4″)
• (b): 155mm (6-1/8″)
