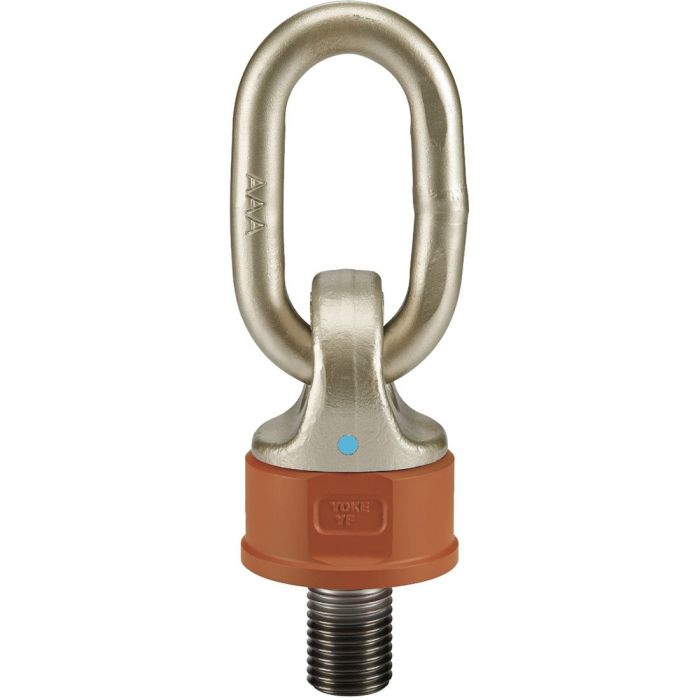

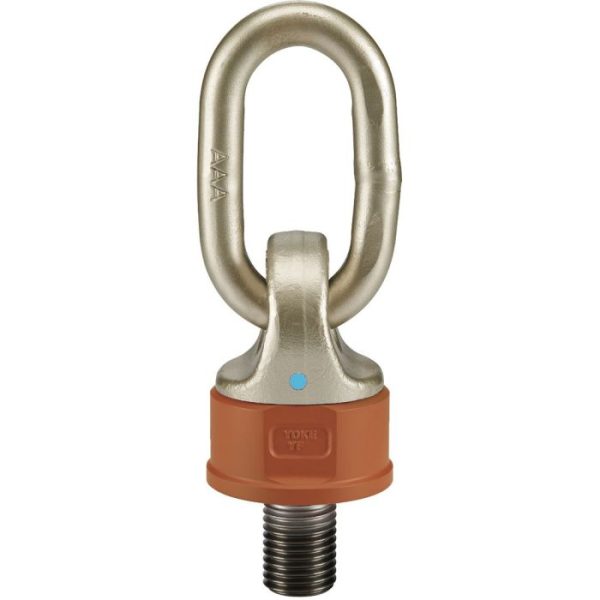

The YOKE DA Series is manufactured to meet the DNV 2.7-1 requirements for offshore container lifting, addressing critical needs for Charpy impact, strength, and ductility. This series is designed to withstand impacts in extreme environments. Each unit comes with a test certificate specifying the material and manufacturing process according to DNV 2.7-1 standards, ensuring complete traceability.
Features:
- Digital Chip embedded with Certificate for serial Traceability
- Pivots to 230°, rotates through 360° due to its unique ball bearing design
- Easy to attach or dismantle due to the forged hexagon shaped body of the DA Swivel Point
- Load rated parts are 100% magnaflux crack detected
- Proof tested to 2.5 times the WLL & Fatigue rated to 20,000 cycles at 1.5 times the WLL
Specifications:
- Bolt Diameter/Thread: M10-1.50
- Thread Projection Length: 15mm
- Manufactured from forged alloy steel, quenched and tempered
- Working Load Limit: 0.60 tons (1320 lbs)
- Design Factor 4:1
- Tested in accordance with DNV GL–ST-0378
- Standards & Certifications: ASME B30.26
Warning:
- Capable of rotating under load, but do not turn continuously in 90 degree direction at full load
