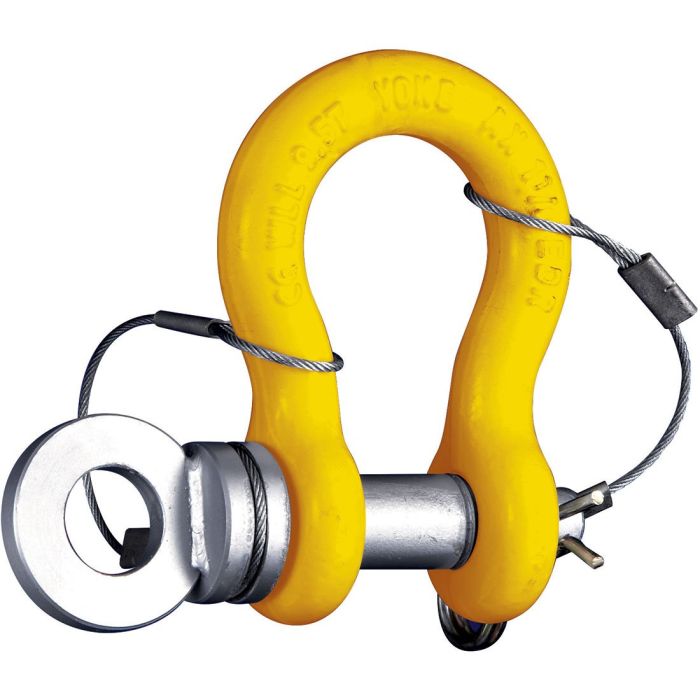

YOKE ROV (Remote Operated Vehicle) shackle with Safety Pin is designed specifically for ROV application and individually stamped with the safe working load.
Features:
- Forged alloy steel, quenched and tempered
- Shackle Bow is painted yellow to ensure ease of sight in water
- Digital Chip embedded with Certificate for serial Traceability
- Minimum Ultimate Load is 5 times the Working Load Limit
- Maximum Proof Load is 2 times the Working Load Limit
Specifications:
- Size (Shackle Body Thickness): 36mm (1-3/8″)
- Throat Opening (Width Between Ears): 59mm (2.32″)
- Throat Depth: 134mm (5.28″)
- Pin Size: 75mm (2.95″)
- Pin Type: Bolt & Cotter
- Finish: Painted
- Material: Alloy Steel
- Working Load Limit: 13.50 tons (29,762 lbs)
- Design Factor 5:1
