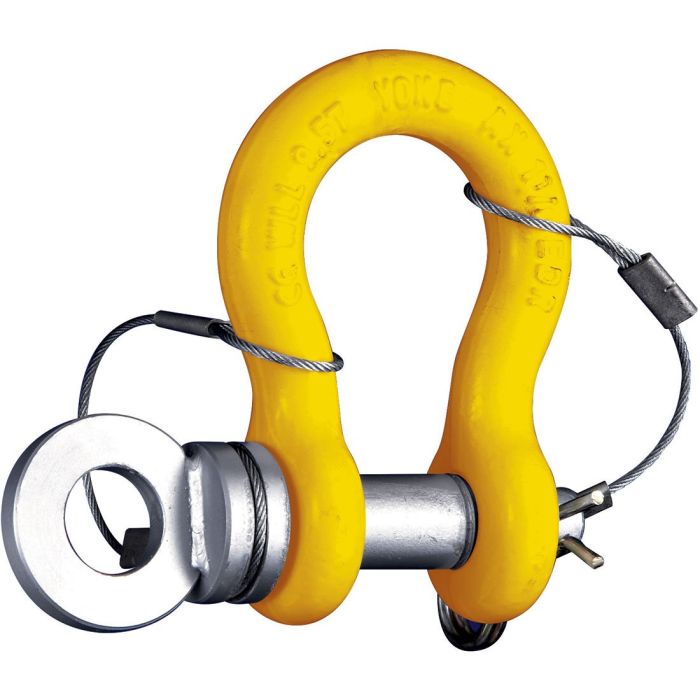

YOKE ROV (Remote Operated Vehicle) shackle with Safety Pin is designed specifically for ROV application and individually stamped with the safe working load.
Features:
- Forged alloy steel, quenched and tempered
- Shackle Bow is painted yellow to ensure ease of sight in water
- Digital Chip embedded with Certificate for serial Traceability
- Minimum Ultimate Load is 5 times the Working Load Limit
- Maximum Proof Load is 2 times the Working Load Limit
Specifications:
- Size (Shackle Body Thickness): 26mm (1″)
- Throat Opening (Width Between Ears): 44mm (1.73″)
- Throat Depth: 96mm (3.78″)
- Pin Size: 50mm (1.97″)
- Pin Type: Bolt & Cotter
- Finish: Painted
- Material: Alloy Steel
- Working Load Limit: 8.50 tons (18,739 lbs)
- Design Factor 5:1
