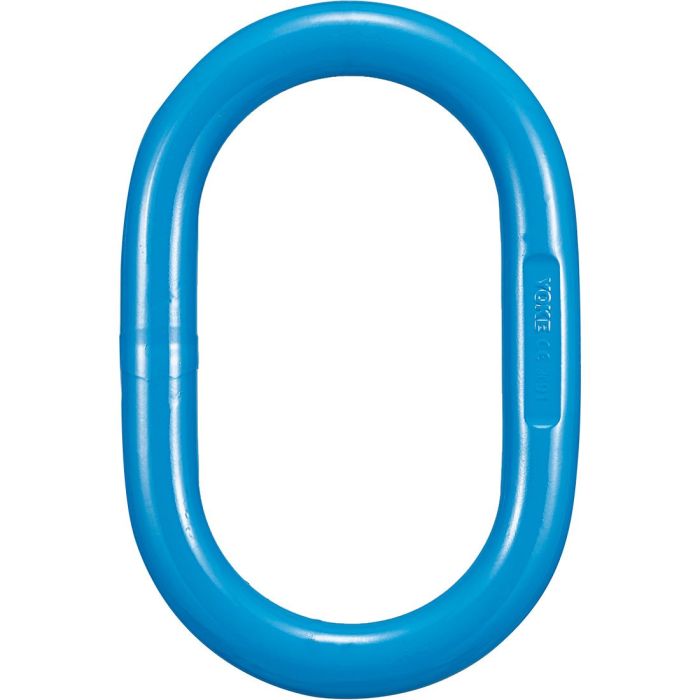

Yoke X-001 Grade 100 Welded Master Link 1-7/16″ (WLL 52,800 lbs)

The Yoke’s X-001 G-100 Welded Master Link is designed for 1-2 legs chain, wire and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 1-Leg Chain Sling Size: 22mm (7/8″)
• 2-Leg Chain Sling Size: 20mm (13/16″)
• Working Load Limit (Design Factor 5:1): 24.00 tons (52,800 lbs)
• Working Load Limit (Design Factor 4:1): 30.00 tons (66,000 lbs)
• Link Thickness (D): 36mm (1-7/16″)
• Inside Length (A): 285mm (11.22″)
• Inside Width (B): 155mm (6.10″)
