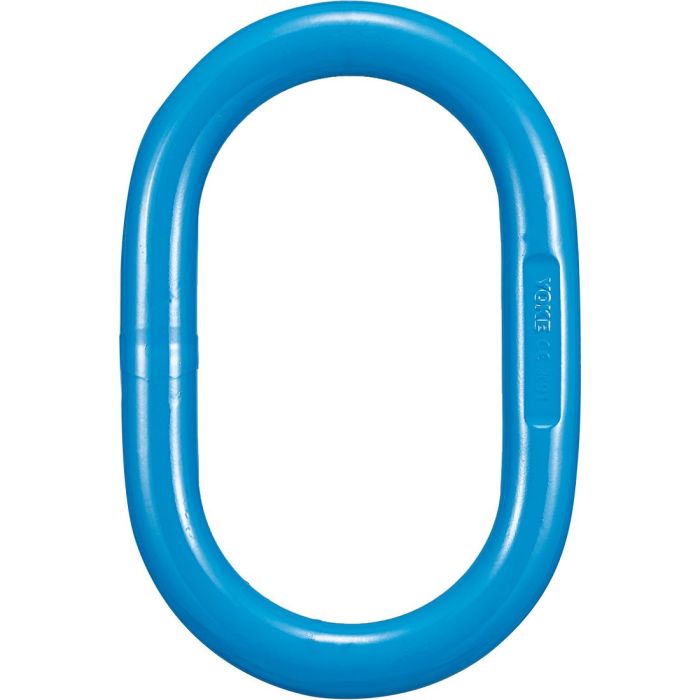

Yoke X-002 Grade 100 Welded Master Link 3/4″ (WLL 14,740 lbs)

The Yoke’s X-002 G-100 Welded Master Link is designed for 1-2 legs chain, wire and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 1-Leg Chain Sling Size: 13mm (1/2″)
• 2-Leg Chain Sling Size: 10mm (3/8″)
• Working Load Limit (WLL): 6.70 tons (14,740 lbs)

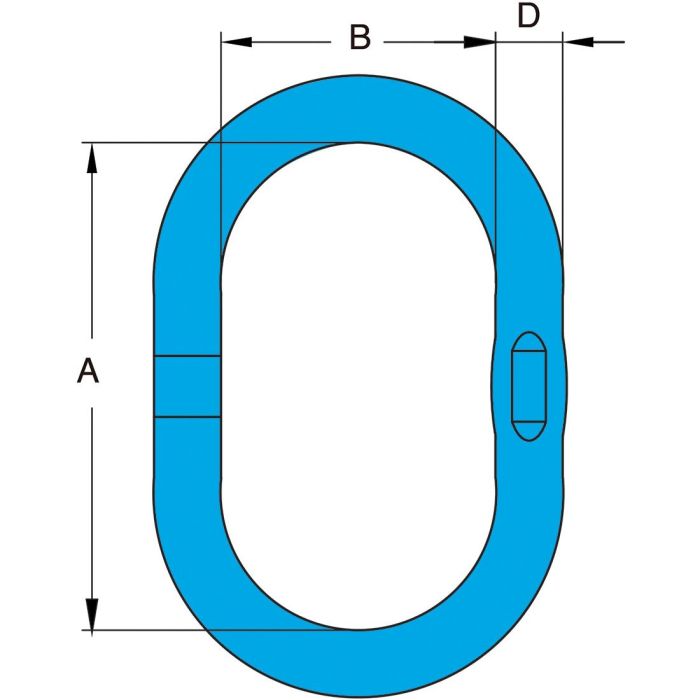

• Link Thickness (D): 19mm (3/4″)
• Inside Length (A): 135mm (5.31″)
• Inside Width (B): 75mm (2.95″)
• Design Factor 4:1
