Yoke X-002W Grade 100 Welded Master Link 1/4″ (WLL 6160 lbs)

The Yoke’s X-002W G-100 Welded Master Link is designed for 1-2 legs chain, wire and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 1-Leg Chain Sling Size: 7mm – 8mm (1/4″ – 5/16″)
• 2-Leg Chain Sling Size: 6mm (7/32″)
• Working Load Limit (WLL): 2.80 tons (6160 lbs)

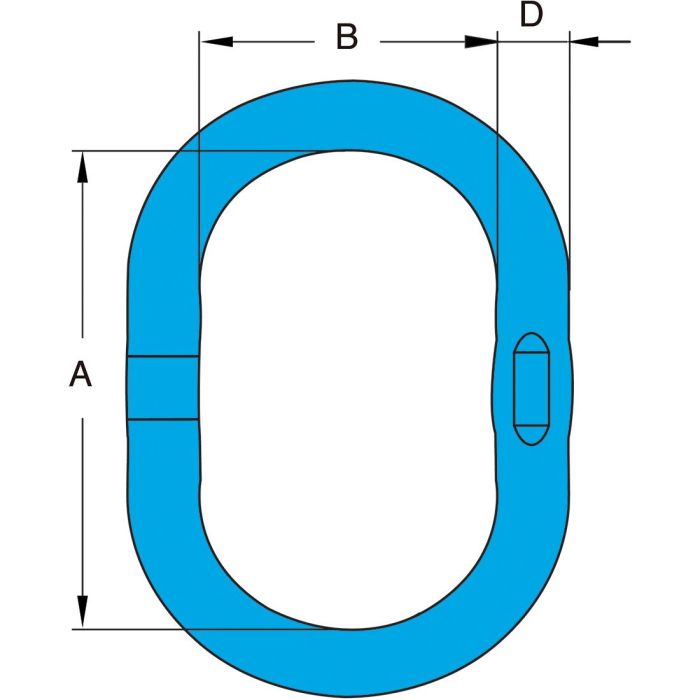

• Link Thickness (D): 13mm (1/2″)
• Inside Length (A): 120mm (4.72″)
• Inside Width (B): 70mm (2.76″)
• Design Factor 4:1
