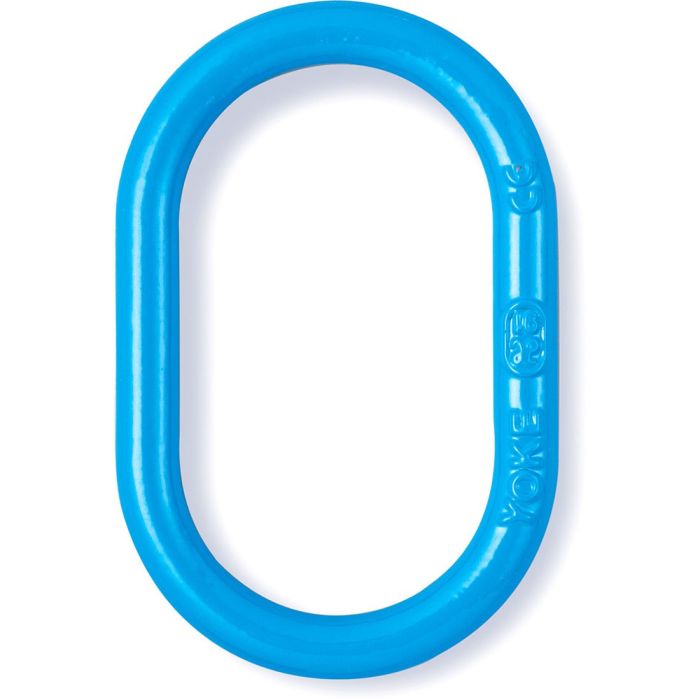

Yoke X-003 Grade 100 Forged Master Link 1-3/8″ (WLL 46,200 lbs)

Yoke X-003 G-100 Forged Oblong Master Links are for making single and double leg chain slings. Working Load Limit (WLL) is for the master link only.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A906/A906M, ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184, DIN PAS1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C
• Designed for 1-2 legs Chain, Wire Rope and Webbing Slings
• Each link is marked with batch number that links to the test certificate with full tracebility to raw materials

Specifications:

• 1-Leg Chain Sling Size: 7/8″
• 2-Leg Chain Sling Size: 5/8″
• Working Load Limit (WLL): 21.00 tons (46,200 lbs)
• Size (link thickness): 1-3/8″
• Inside Length: 9.45″
• Inside Width: 5.51″
• Design Factor 4:1
