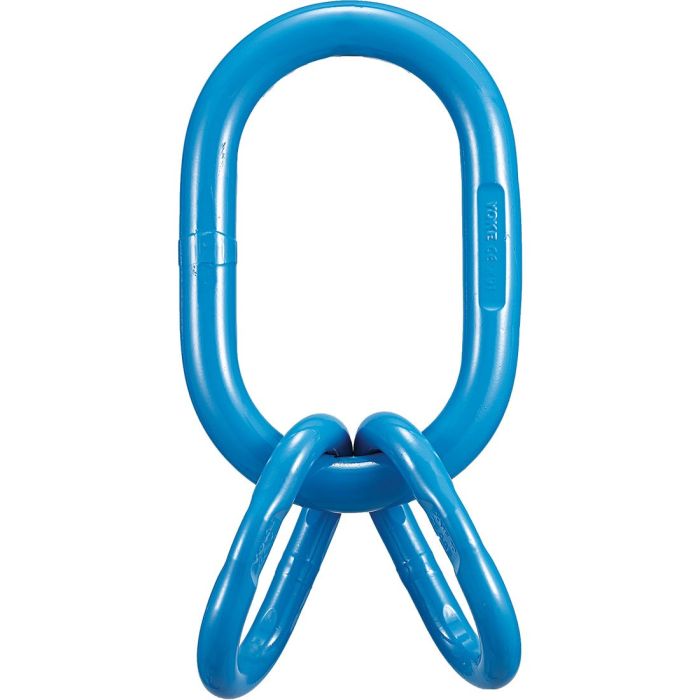

Yoke X-006 Grade 100 Welded Master Link Assembly 7/8″ (WLL 18,040 lbs)

The Yoke’s X-006 G-100 Welded Master Link Assembly is designed for 3 and 4 leg chain, wire rope and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 3 and 4-Leg Chain Sling Size: 7mm – 8mm (1/4″ – 5/16″)
• Working Load Limit (WLL): 8.20 tons (18,040 lbs)
• Proof Load: 201 kN
• Size (main link thickness): 22mm (7/8″)
• Inside Length (main link): 160mm (6.30″)
• Inside Width (main link): 90mm (3.54″)
• (d): 16mm (5/8″)
• (a): 70mm (2-3/4″)
• (b): 34mm (1-5/16″)
• Design Factor 4:1
