Yoke X-006L Grade 100 Welded Long Master Link Assembly 5/8″ (WLL 48,840 lbs)

The Yoke’s X-006L G-100 Welded Master Link Assembly is designed for 3 and 4 leg chain, wire rope and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1911
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 3 and 4-Leg Chain Sling Size: 16mm (5/8″)
• Working Load Limit (WLL): 22.20 tons (48,840 lbs)
• Proof Load: 544 kN

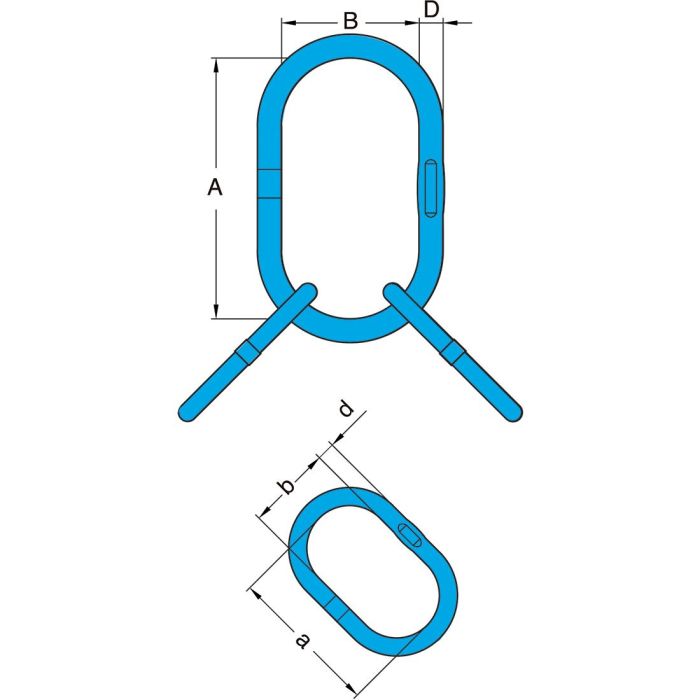

• Size (main link thickness): 45mm (1-3/4″)
• Inside Length (main link): 300mm (11.81″)
• Inside Width (main link): 180mm (7.09″)
• (d): 32mm (1-1/4″)
• (a): 200mm (7-7/8″)
• (b): 110mm (4-5/16″)
