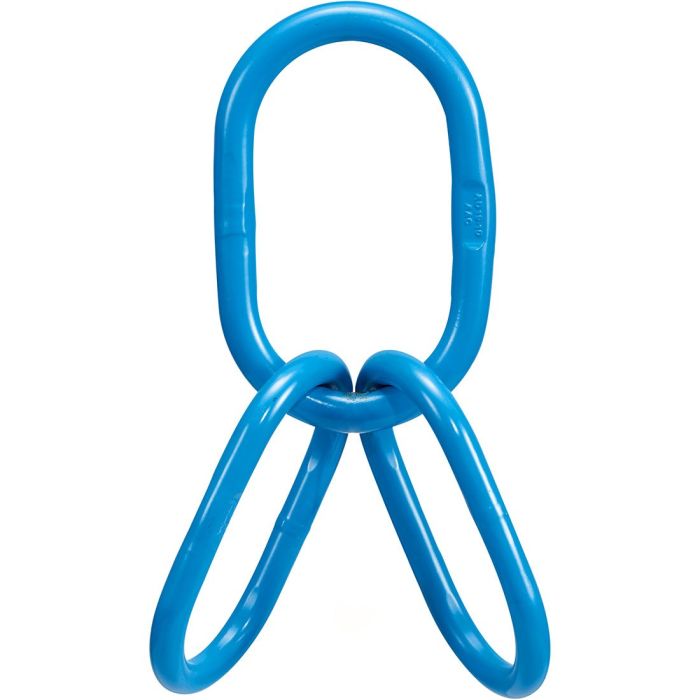

Yoke X-007 Grade 100 Welded Master Link Assembly 1-1/4″ (WLL 37,400 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• Fits Chain Size: 13mm (1/2″)
• Working Load Limit (Design Factor 5:1): 17.00 tons (37,400 lbs)
• Working Load Limit (Design Factor 4:1): 21.30 tons (46,750 lbs)
• Proof Load: 417 kN
• Size (main link thickness): 32mm (1-1/4″)
• Inside Length (main link): 275mm (10.83″)
• Inside Width (main link): 145mm (5.70″)
• (d): 25mm (1″)
• (a): 210mm (8-1/4″)
• (b): 115mm (4-1/2″)
