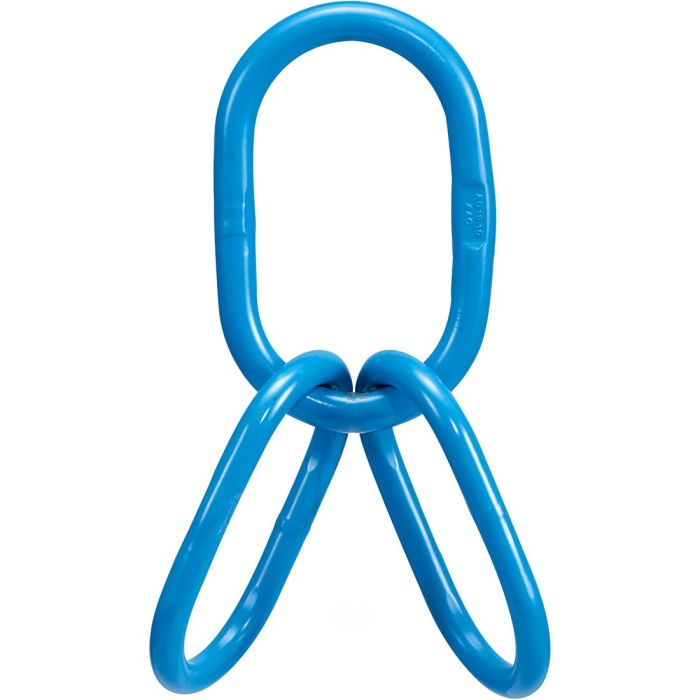

Yoke X-007 Grade 100 Welded Master Link Assembly 1-3/4″ (WLL 84,260 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• Fits Chain Size: 20mm (3/4″)
• Working Load Limit (Design Factor 5:1): 38.30 tons (84,260 lbs)
• Working Load Limit (Design Factor 4:1): 47.90 tons (105,325 lbs)
• Proof Load: 938 kN

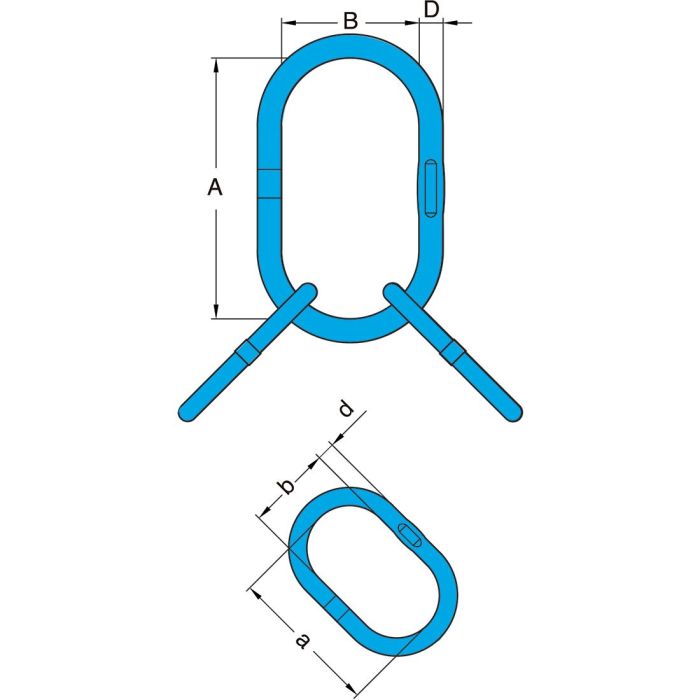

• Size (main link thickness): 45mm (1-3/4″)
• Inside Length (main link): 340mm (13.39″)
• Inside Width (main link): 180mm (7.09″)
• (d): 36mm (1-7/16″)
• (a): 285mm (11-1/4″)
• (b): 155mm (6-1/8″)
