Yoke X-007 Grade 100 Welded Master Link Assembly 1-9/16″ (WLL 61,820 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• Fits Chain Size: 16mm (5/8″)
• Working Load Limit (Design Factor 5:1): 28.10 tons (61,820 lbs)
• Working Load Limit (Design Factor 4:1): 35.10 tons (77,275 lbs)
• Proof Load: 688 kN

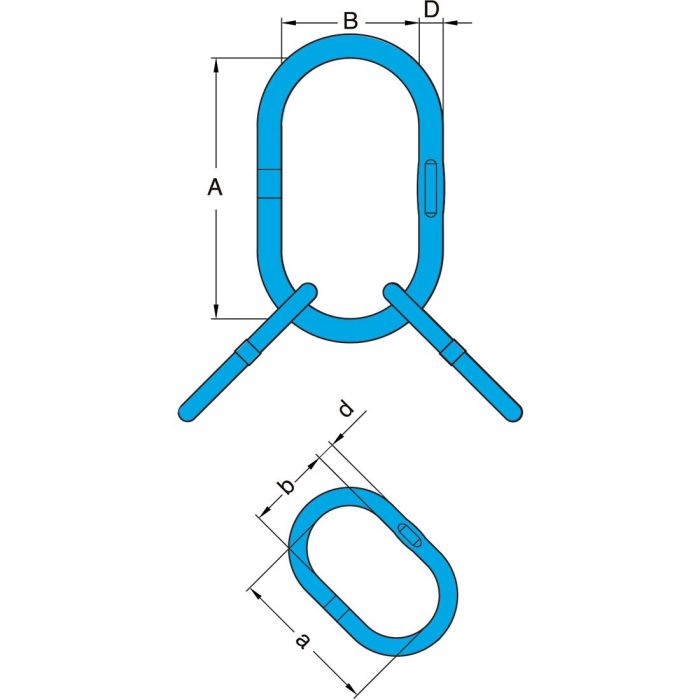

• Size (main link thickness): 40mm (1-9/16″)
• Inside Length (main link): 300mm (11.81″)
• Inside Width (main link): 160mm (6.30″)
• (d): 32mm (1-1/4″)
• (a): 275mm (10-13/16″)
• (b): 145mm (5-11/16″)
