Yoke X-007 Grade 100 Welded Master Link Assembly 1″ (WLL 19,580 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• Fits Chain Size: 10mm (3/8″)
• Working Load Limit (Design Factor 5:1): 8.90 tons (19,580 lbs)
• Working Load Limit (Design Factor 4:1): 11.10 tons (24,475 lbs)
• Proof Load: 218 kN

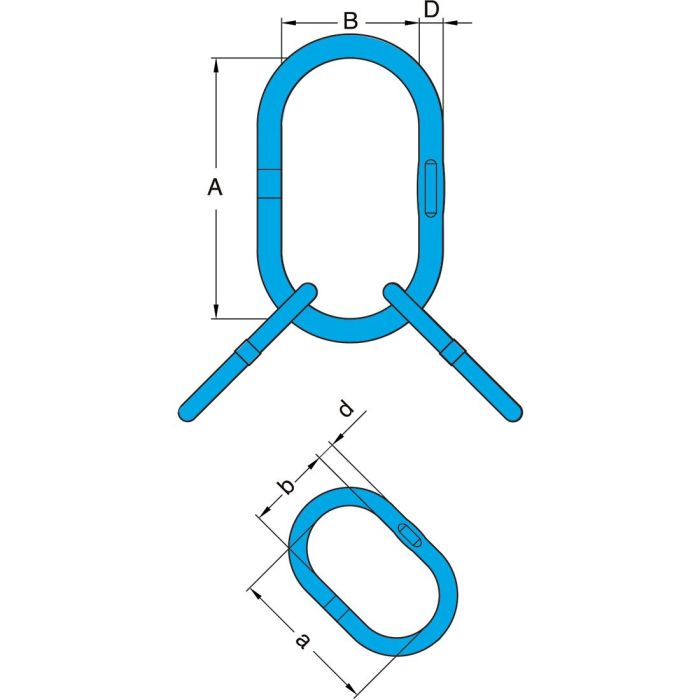

• Size (main link thickness): 25mm (1″)
• Inside Length (main link): 275mm (10.83″)
• Inside Width (main link): 145mm (5.70″)
• (d): 19mm (3/4″)
• (a): 160mm (6-5/16″)
• (b): 90mm (3-9/16″)
