Yoke X-007 Grade 100 Welded Master Link Assembly 3/4″ (WLL 11,660 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• Fits Chain Size: 7mm – 8mm (1/4″ – 5/16″)
• Working Load Limit (Design Factor 5:1): 5.30 tons (11,660 lbs)
• Working Load Limit (Design Factor 4:1): 6.60 tons (14,575 lbs)
• Proof Load: 130 kN

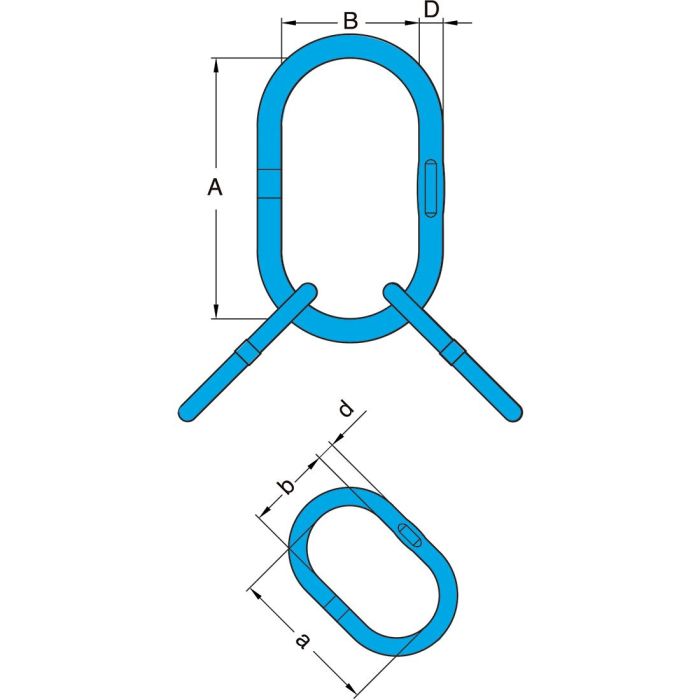

• Size (main link thickness): 19mm (3/4″)
• Inside Length (main link): 160mm (6.30″)
• Inside Width (main link): 90mm (3.54″)
• (d): 16mm (5/8″)
• (a): 140mm (5-1/2″)
• (b): 70mm (2-3/4″)
