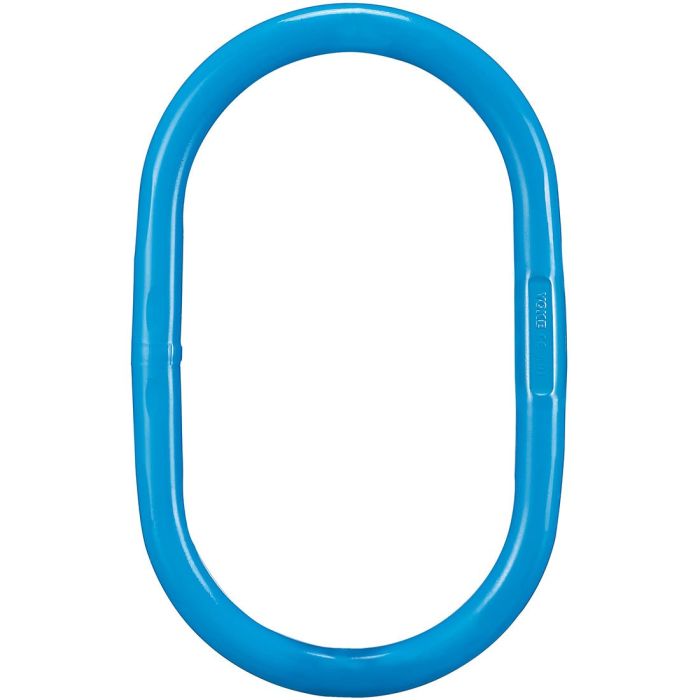

Yoke X-0080 Grade 100 Welded Master Link 5/8″ (WLL 22,000 lbs)

The Yoke’s X-0080 G-100 Welded Master Link is designed for 1 leg chain, wire and webbing slings.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 1-Leg Chain Sling Size: 16mm (5/8″)
• Working Load Limit (WLL): 10.00 tons (22,000 lbs)
• Link Thickness (D): 32mm (1-1/4″)
• Inside Length (A): 340mm (13.39″)
• Inside Width (B): 180mm (7.09″)
• Design Factor 4:1
