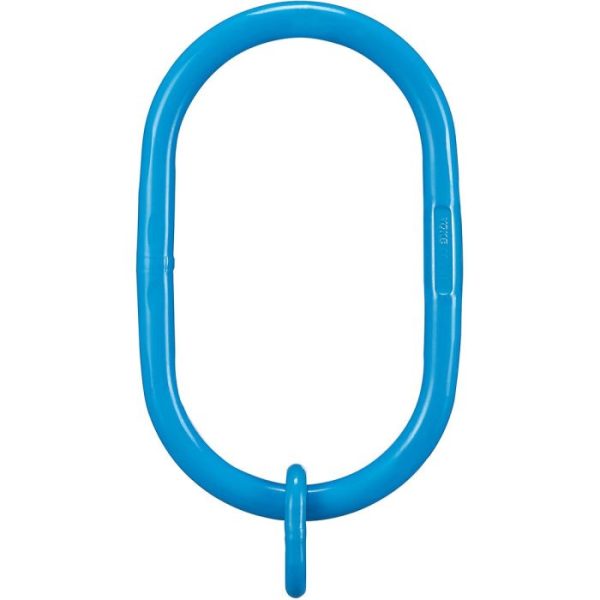

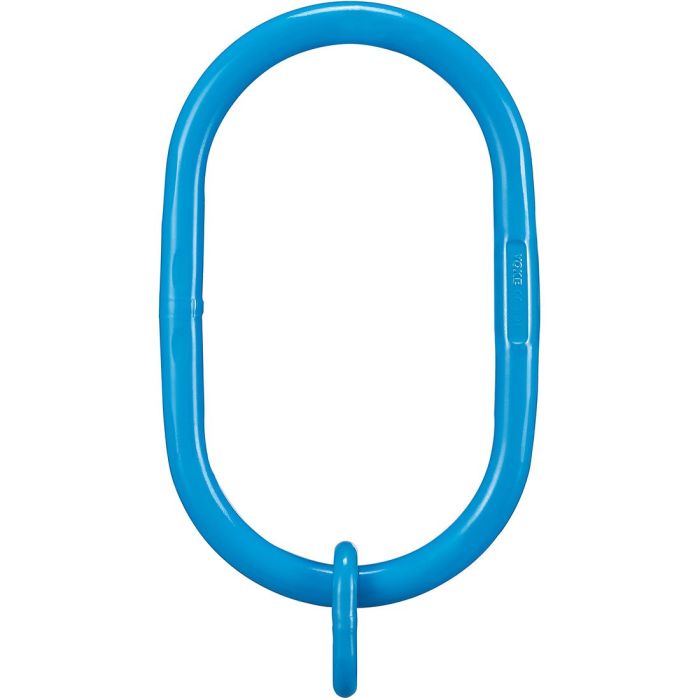

Yoke X-0081 Grade 100 Welded Master Link Assembly 7/8″ (WLL 5500 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with ASTM A906/A952, ASME B30.9, ASME B30.26, EN 1677 and OSHA 1910
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C

Specifications:

• 1-Leg Chain Sling Size: 6mm – 8mm (7/32″ – 5/16″)
• Working Load Limit (WLL): 2.50 tons (5500 lbs)
• Size (main link thickness): 22mm (7/8″)
• Inside Length (main link): 340mm (13.39″)
• Inside Width (main link): 180mm (7.09″)
• (d): 13mm (0.50″)
• (a): 54mm (2.13″)
• (b): 25mm (0.98″)
• Design Factor 4:1
