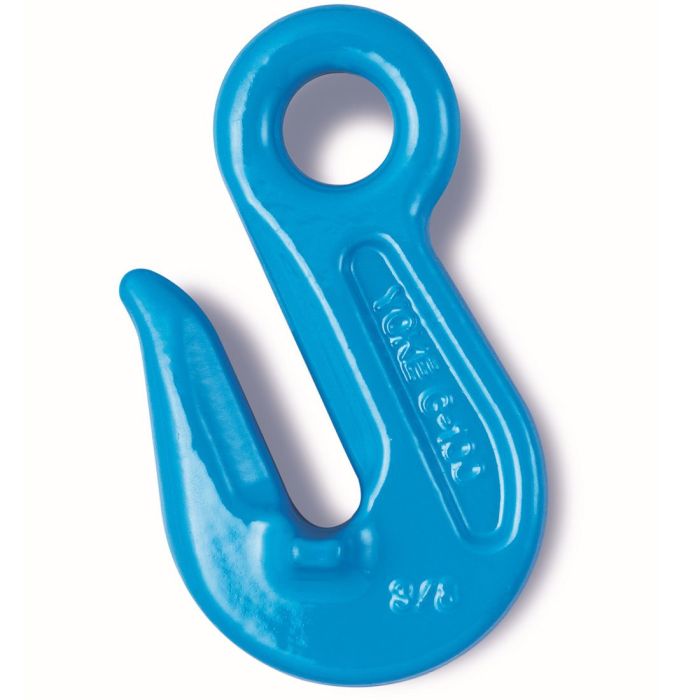

Yoke X-041 Grade 100 Eye Grab Hook 1-1/4″ (WLL 88,184 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with DIN 5692, EN 1677-1 and ASTM A952/A 952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation
• ***Not for use with Omega Link***

Specifications:

• Fits Chain Size: 32mm (1-1/4″)
• Working Load Limit (WLL): 40.00 tons (88,184 lbs)

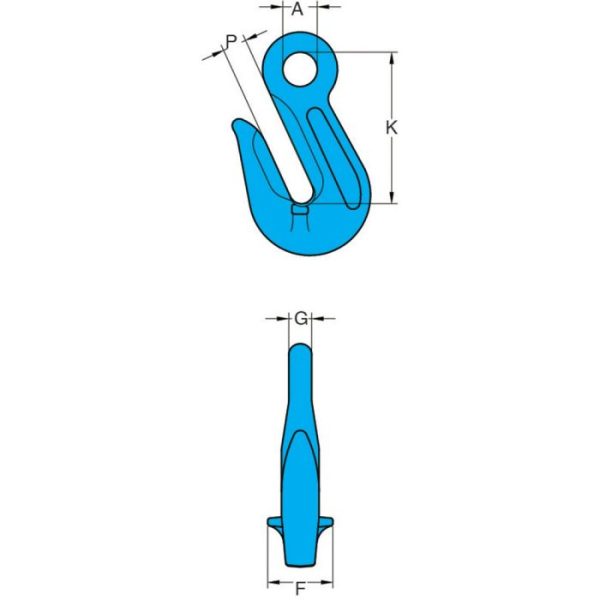

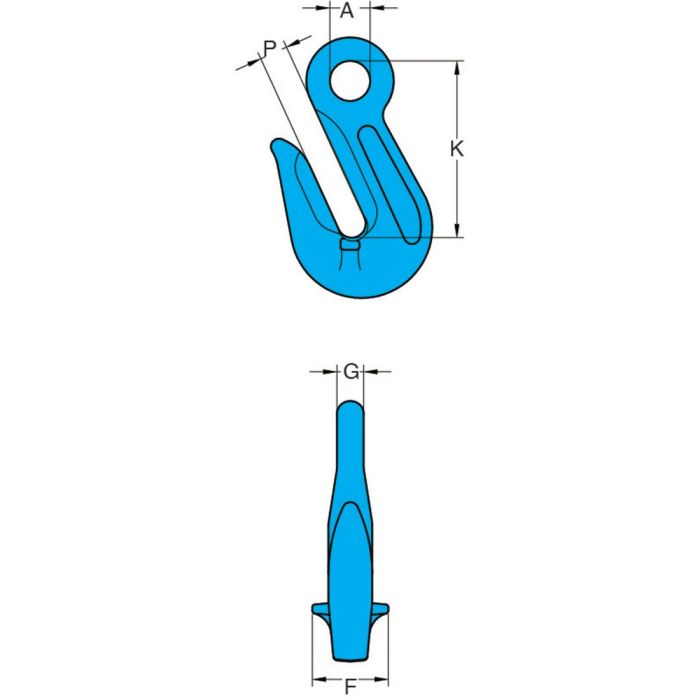

• (A): 62mm (2.44″)
• (B): 37mm (1.46″)
• (F): 130mm (5.12″)
• (G): 42mm (1.65″)
• (K): 266mm (10.47″)
• (P): 42mm (1.65″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
