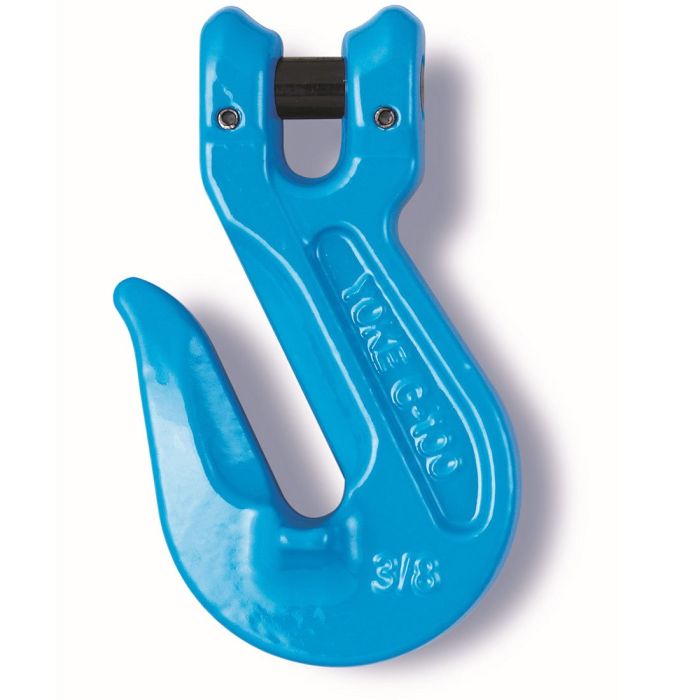

Yoke X-042 Grade 100 Clevis Grab Hook 7/8″ (WLL 41,887 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with DIN PAS 1061, EN 1677-1 and ASTM A952/A 952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation
• ***Not for use with Omega Link***

Specifications:

• Fits Chain Size: 22mm (7/8″)
• Working Load Limit (WLL): 19.00 tons (41,887 lbs)

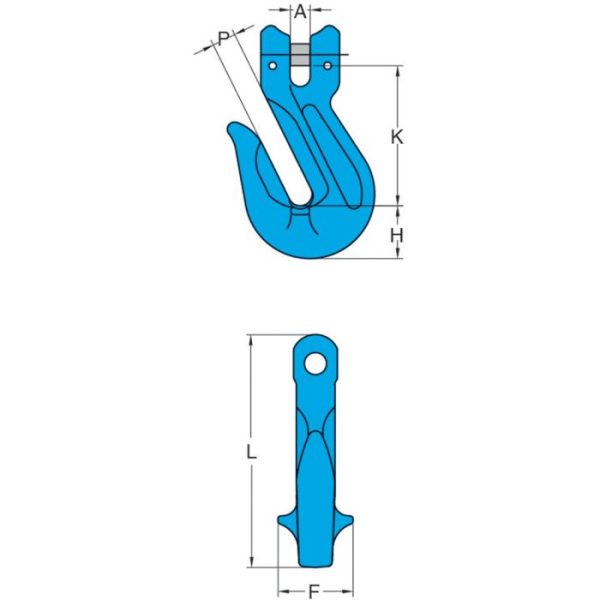

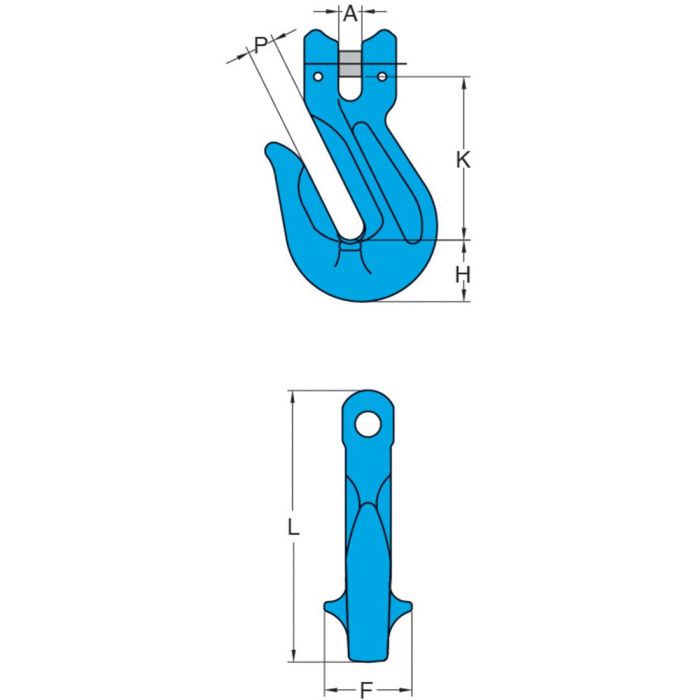

• (A): 24mm (0.94″)
• (F): 70mm (2.76″)
• (H): 56mm (2.20″)
• (K): 139mm (5.47″)
• (L): 247mm (9.72″)
• (P): 26mm (1.02″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
