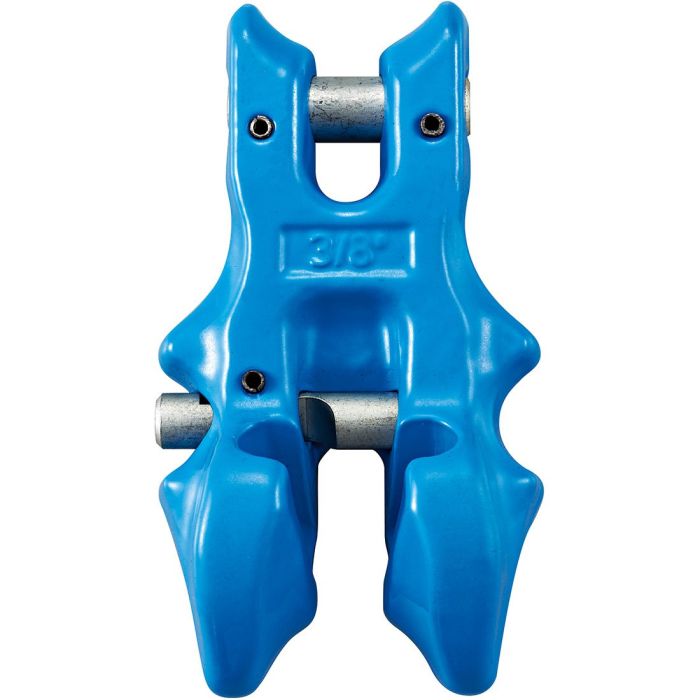

Yoke X-061 Grade 100 Clevis Clutch Locking Shortener Link 16mm (WLL 22,046 lbs)

Yoke’s X-061 G-100 Clevis Clutch Locking Type allows the clevis clutch to use 100% of the chain sling capacity. The locking system and spring locking pin design is to enhance security and prevent the chains from disengaging.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C

Specifications:

• Fits Chain Size: 16mm (5/8″)
• Working Load Limit (WLL): 10.00 tons (22,046 lbs)

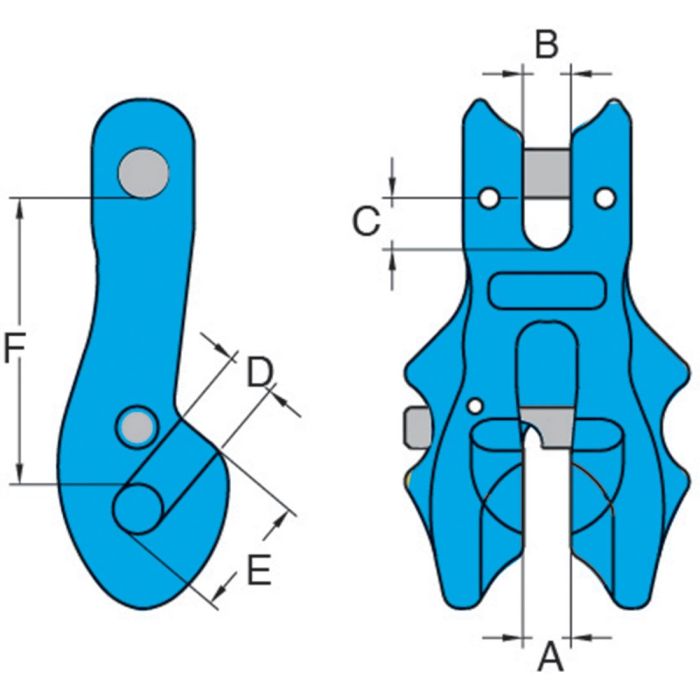

• (A): 21mm (0.83″)
• (B): 18mm (0.71″)
• (C): 18mm (0.71″)
• (D): 19mm (0.75″)
• (E): 48mm (1.89″)
• (F): 103mm (4.06″)
• Design Factor 4:1
