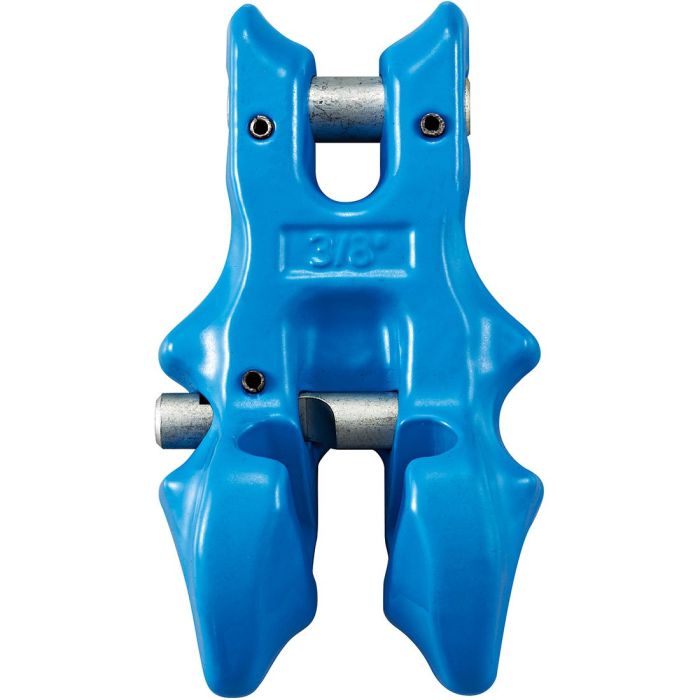

Yoke X-061 Grade 100 Clevis Clutch Locking Shortener Link 7mm – 8mm (WLL 5511 lbs)

Yoke’s X-061 G-100 Clevis Clutch Locking Type allows the clevis clutch to use 100% of the chain sling capacity. The locking system and spring locking pin design is to enhance security and prevent the chains from disengaging.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C

Specifications:

• Fits Chain Size: 7mm – 8mm (1/4″ – 5/16″)
• Working Load Limit (WLL): 2.50 tons (5511 lbs)

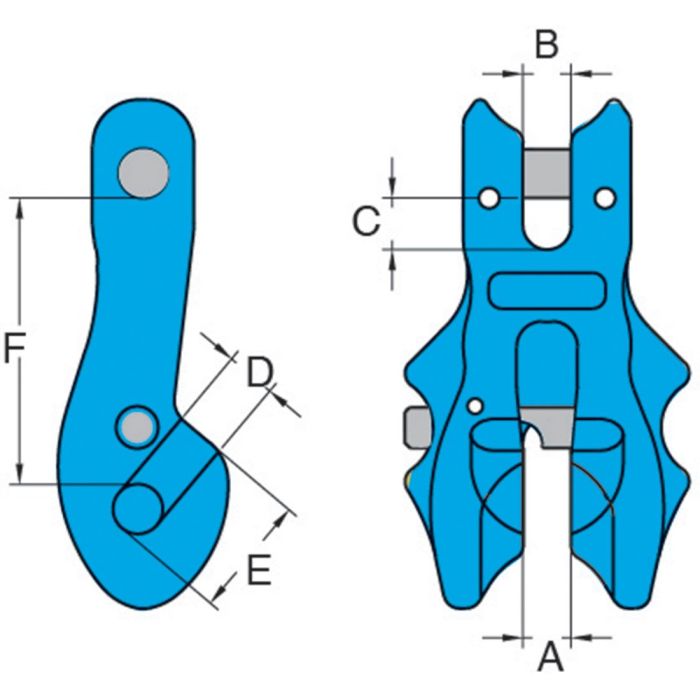

• (A): 10mm (0.39″)
• (B): 10mm (0.39″)
• (C): 10mm (0.39″)
• (D): 10mm (0.39″)
• (E): 24mm (0.94″)
• (F): 58mm (2.28″)
• Design Factor 4:1
