Yoke X-069 Grade 100 Clevis Container Hook 3/8″ (WLL 8818 lbs)

The Yoke X-069 G-100 Clevis Container Hook has a locking system and spring locking pin design to enhance security and prevent the chains from disengaging. The use of Clevis Clutch still allows 100% of the chain sling capacity.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C

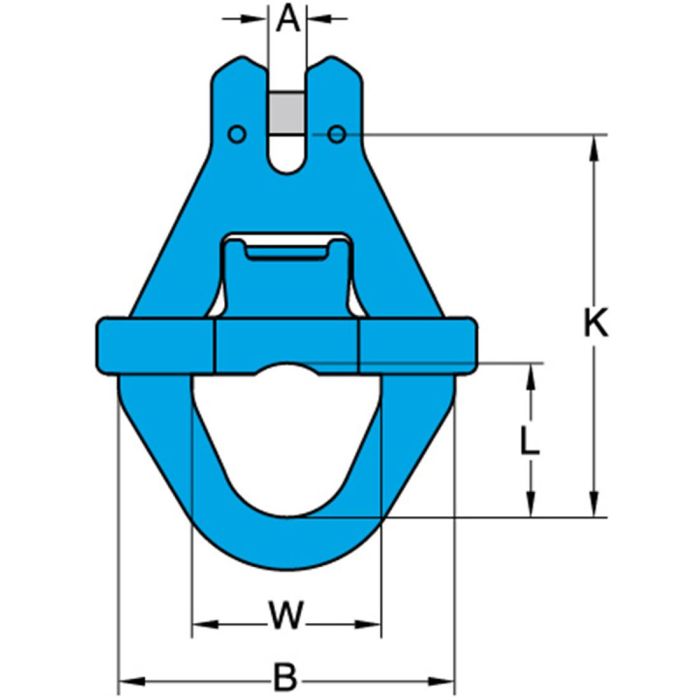

Specifications:

• Fits Chain Size: 10mm (3/8″)
• Working Load Limit (WLL): 4.00 tons (8818 lbs)
• (A): 12mm (0.47″)
• (B): 125mm (4.92″)
• (K): 138mm (5.43″)
• (L): 57mm (2.24″)
• (W): 65mm (2.56″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
