- 25% greater WLL than traditional Grade 80 products
- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with DIN EN 1677-1 and DIN 5692
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

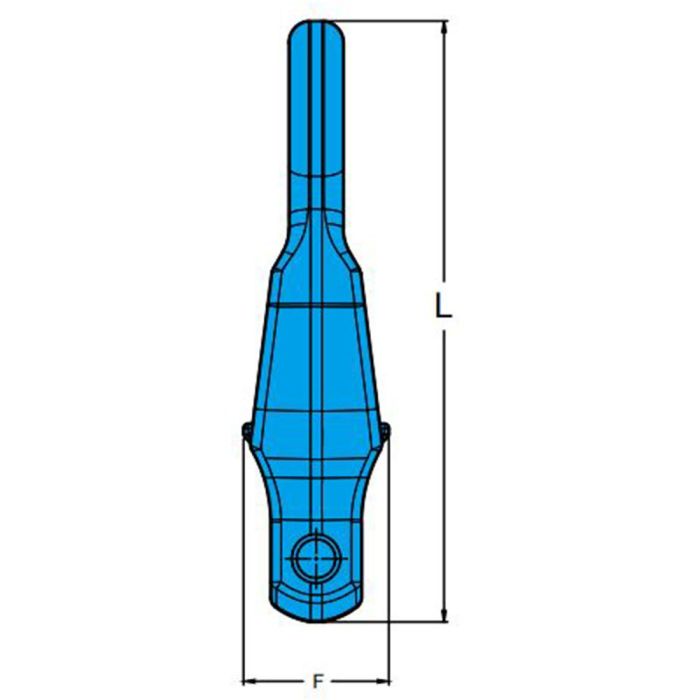

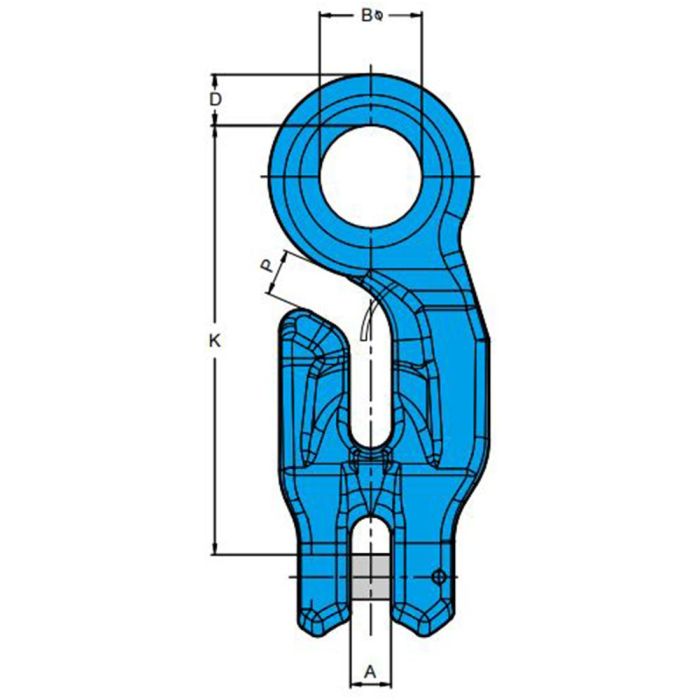

- Dimensions:
- A: 10mm (0.4″)
- B: 24mm (0.9″)
- D: 13mm (0.5″)
- F: 32mm (1.3″)
- K: 102mm (4″)
- L: 134mm (5.3″)
- P: 12mm (0.5″)
- Fits Chain Size: 7mm-8mm (1/4″ – 5/16″)
- Working Load Limit: 2.5 tons (5000 lbs)
