- 25% greater WLL than traditional Grade 80 products
- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with DIN EN 1677-1 and DIN 5692
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

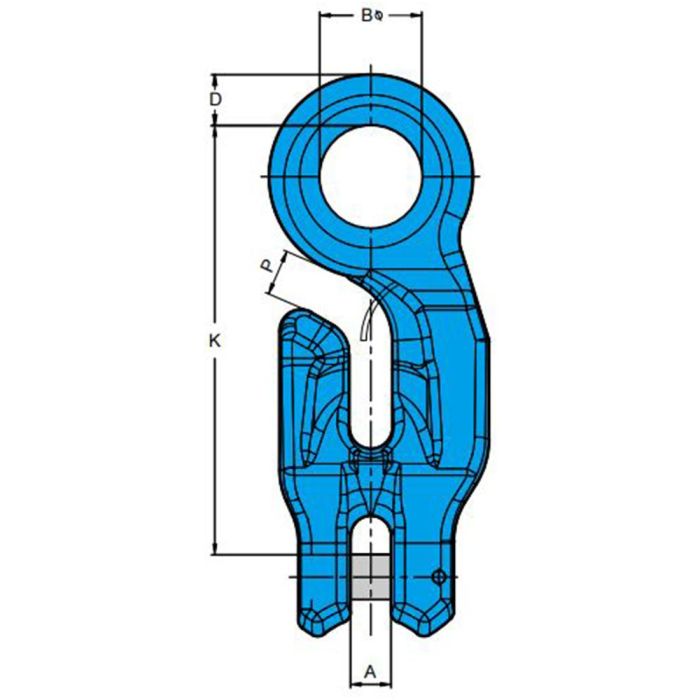

- Dimensions:
- A: 19mm (0.7″)
- B: 48mm (1.9″)
- D: 24mm (0.9″)
- F: 64mm (2.5″)
- K: 202mm (8″)
- L: 264mm (10.4″)
- P: 21mm (0.8″)
- Fits Chain Size: 16mm (5/8″)
- Working Load Limit: 10 tons (20,000 lbs)
