Yoke X-079 Grade 100 Eye Grab Hook 1/4″ (WLL 3086 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with DIN EN-1677-1 and DIN 5692
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C

Specifications:

• Fits Chain Size: 6mm (1/4″)
• Working Load Limit (WLL): 1.40 tons (3086 lbs)

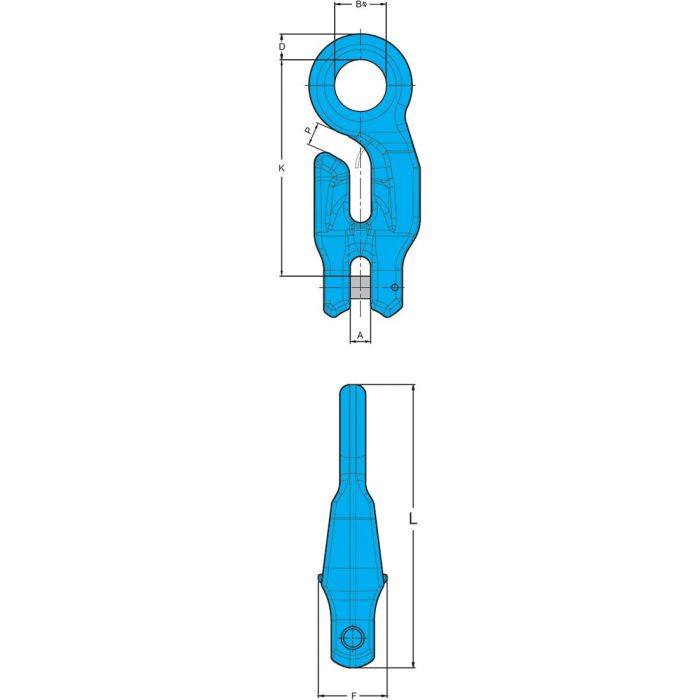

• (A): 8mm (0.31″)
• (B): 18mm (0.71″)
• (D): 9mm (0.35″)
• (F): 24mm (0.94″)
• (K): 76mm (2.99″)
• (L): 99mm (3.90″)
• (P): 12mm (0.47″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
