Yoke X-173 Grade 100 Alloy Eye Latch Hook 1/4″ (WLL 5000 lbs)

$5.18

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: 36d4d9ec9ba54569 Category: Self-Locking Sling Hooks

Description

25% greater WLL than traditional Grade 80 products
Proof Load tested at 2.5 times the WLL with batch certification
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Minimum tempering temperature of 400°C
Manufactured in accordance with EN 1677- 2 and ASME B30.26
Magnaflux crack detection is performed 100% on each batch
Design Factor 4:1
Material: Alloy Steel
Finish: Painted
Grade: 100

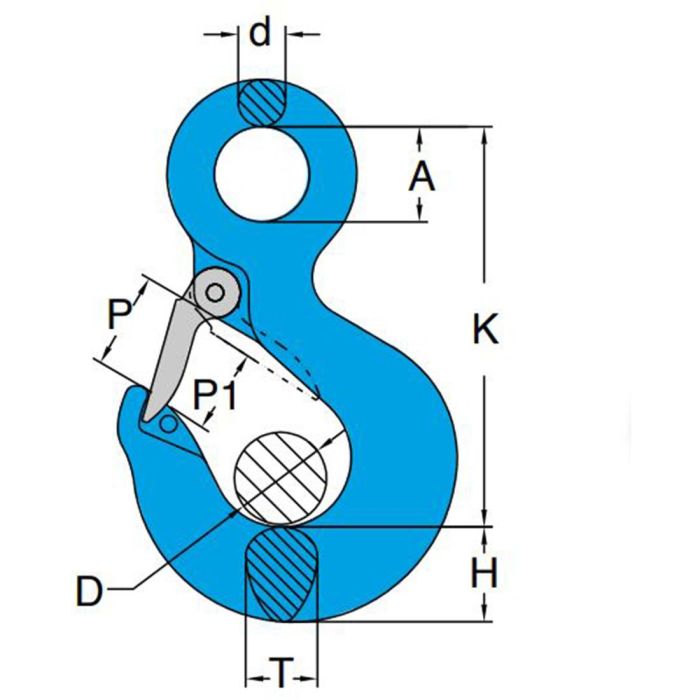

Dimensions:

A: 29mm (0.8″)
D: 20mm (0.5″)
d: 13mm (1.1″)
H: 27mm (4.2″)
K: 106mm (0.9″)
P: 24mm (0.8″)
P1: 20mm (0.9″)
T: 22mm (0.8″)

Fits Chain Size: 7mm (1/4″)
Working Load Limit: 2.5 tons (5000 lbs)
