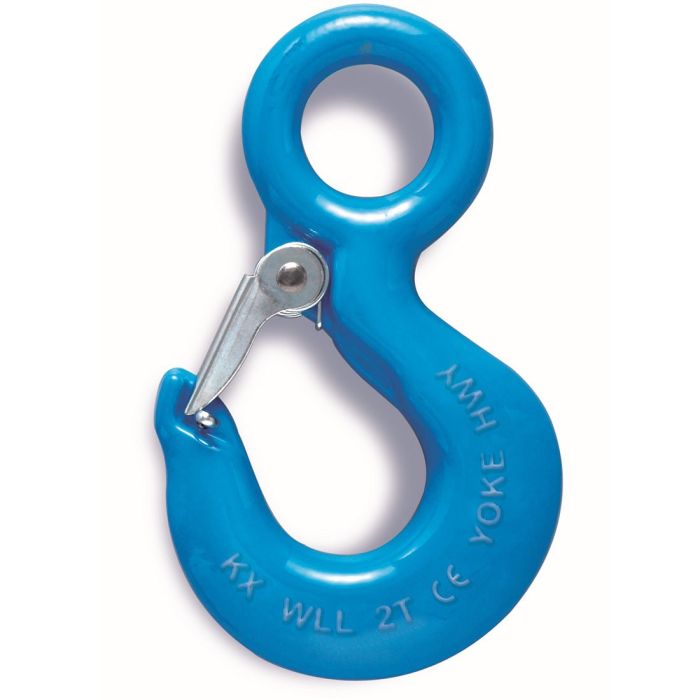

Yoke X-173 Grade 100 Alloy Eye Latch Hook 1″ (WLL 58,421 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 26mm (1″)
• Working Load Limit (WLL): 26.50 tons (58,421 lbs)
• (A): 91mm (3.58″)
• (D): 81mm (3.19″)
• (d): 40mm (1.57″)
• (H): 74mm (2.91″)
• (K): 318mm (12.52″)
• (P): 92mm (3.62″)
• (P1): 81mm (3.19″)
• (T): 68mm (2.68″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
