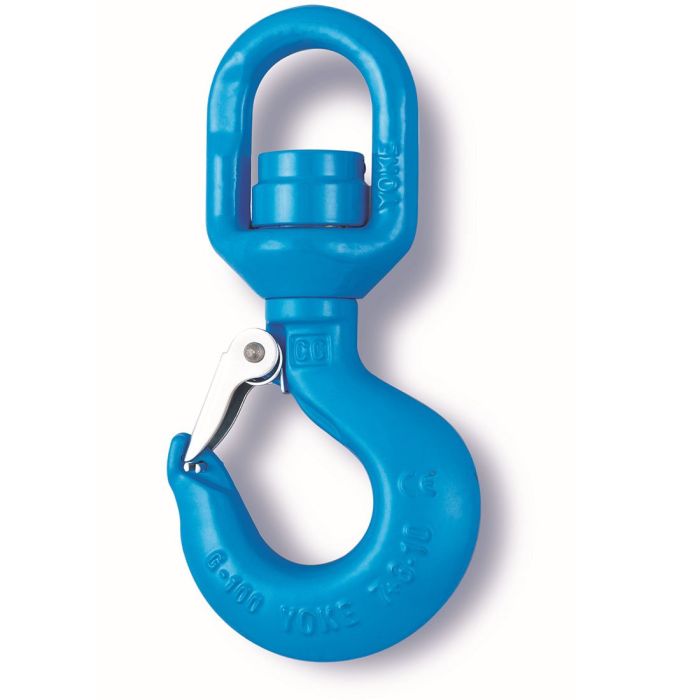

Yoke X-175 Grade 100 Alloy Swivel Hoist Hook 3/16″ (WLL 2204 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 5mm (3/16″)
• Working Load Limit (WLL): 1.00 tons (2204 lbs)

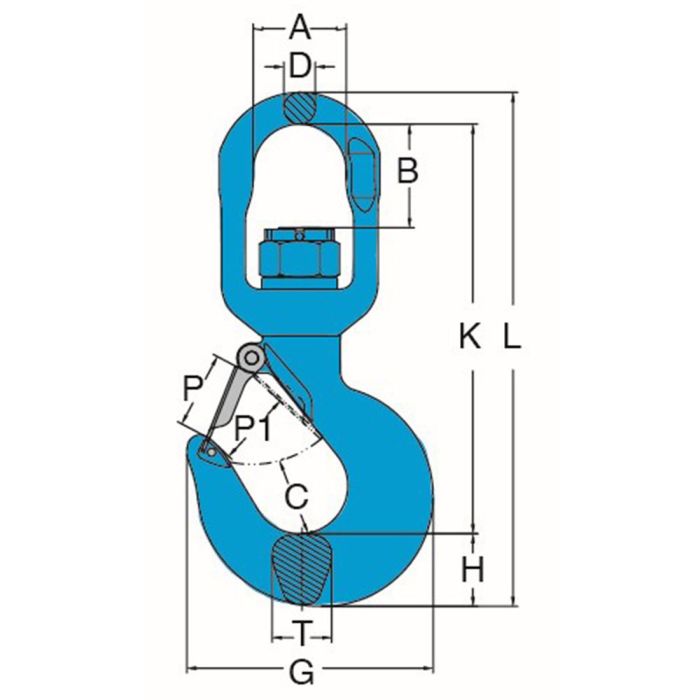

• (A): 32mm (1.26″)
• (B): 23mm (0.91″)
• (C): 25mm (0.98″)
• (D): 12mm (0.47″)
• (G): 73mm (2.87″)
• (H): 19mm (0.75″)
• (K): 125mm (4.92″)
• (L): 156mm (6.14″)
• (P): 24mm (0.94″)
• (P1): 22mm (0.87″)
• (T): 17mm (0.67″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
