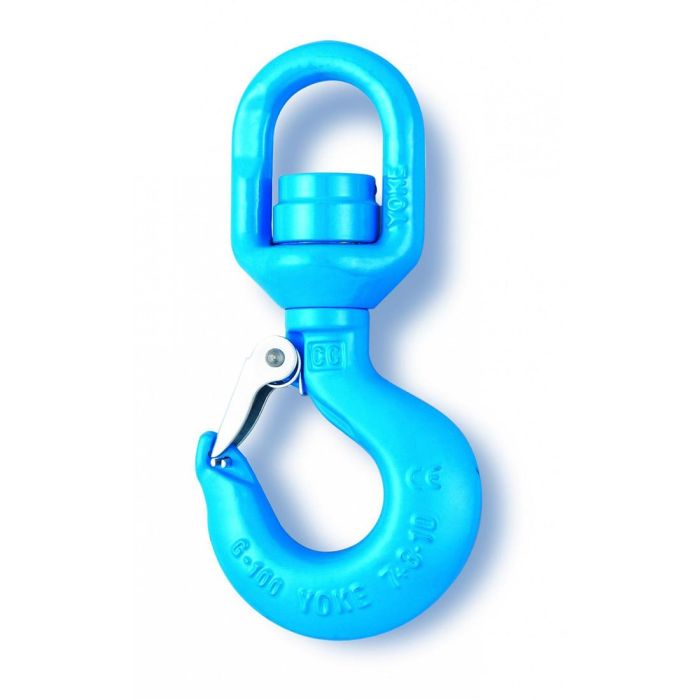

- 25% greater WLL than traditional Grade 80 products
- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with EN 1677- 2 and ASME B30.26
- Magnaflux crack detection is performed 100% on each batch
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100
- Dimensions:
- A: 74mm (2.9″)
- B: 86mm (3.4″)
- C: 62mm (2.4″)
- D: 25mm (1″)
- G: 196mm (7.7″)
- H: 56mm (2.2″)
- K: 327mm (12.9″)
- L: 410mm (16.1″)
- P: 61mm (2.4″)
- P1: 57mm (2.2″)
- T: 47mm (1.9″)
- Fits Chain Size: 18mm (3/4″)
- Working Load Limit: 16 tons (32,000 lbs)
