- 25% greater WLL than traditional Grade 80 products
- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with EN 1677- 2 and ASME B30.26
- Magnaflux crack detection is performed 100% on each batch
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

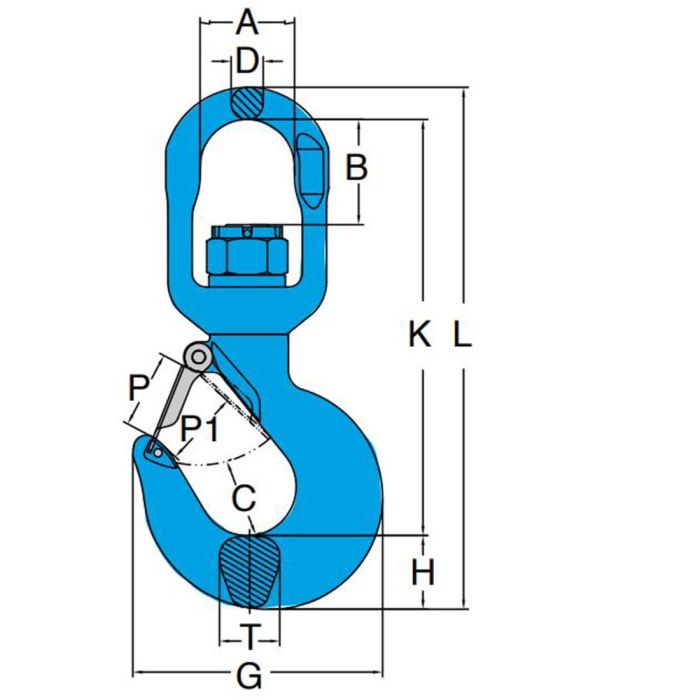

- Dimensions:
- A: 41mm (1.6″)
- B: 38mm (1.5″)
- C: 29mm (1.1″)
- D: 16mm (0.6″)
- G: 102mm (4″)
- H: 29mm (1.1″)
- K: 172mm (6.8″)
- L: 217mm (8.5″)
- P: 28mm (1.1″)
- P1: 25mm (1″)
- T: 24mm (0.9″)
- Fits Chain Size: 10mm (3/8″)
- Working Load Limit: 4 tons (8000 lbs)
