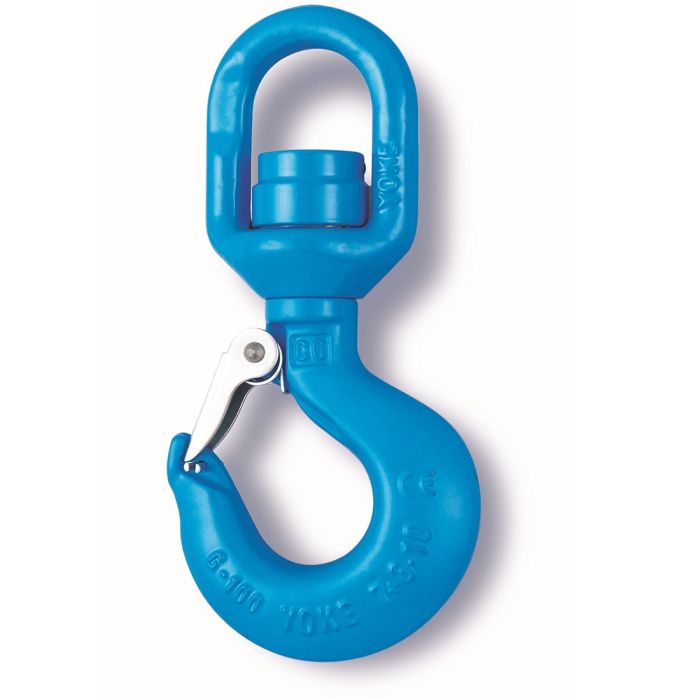

Yoke X-175N Grade 100 Swivel Bearing Hoist Hook 1/2″ (WLL 14,770 lbs)

Features:

• Built with ball bearing and enables full swivel feature under load
• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 13mm (1/2″)
• Working Load Limit (WLL): 6.70 tons (14,770 lbs)
• (A): 46mm (1.81″)
• (B): 44mm (1.73″)
• (C): 38mm (1.50″)
• (D): 21mm (0.83″)
• (G): 122mm (4.80″)
• (H): 38mm (1.50″)
• (K): 218mm (8.58″)
• (L): 277mm (10.91″)
• (P): 35mm (1.38″)
• (P1): 31mm (1.22″)
• (T): 31mm (1.22″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
