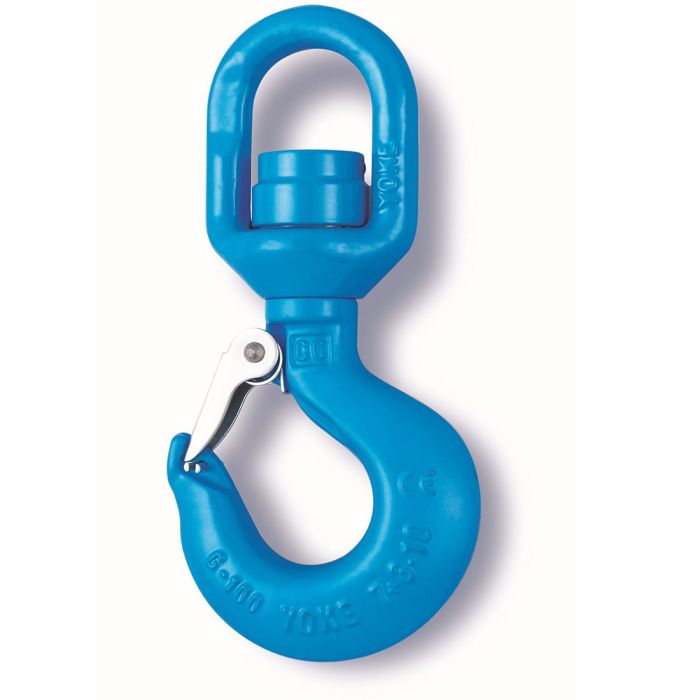

Yoke X-175N Grade 100 Swivel Bearing Hoist Hook 1/4″ (WLL 5511 lbs)

Features:

• Built with ball bearing and enables full swivel feature under load
• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 7mm – 8mm (1/4″)
• Working Load Limit (WLL): 2.50 tons (5511 lbs)

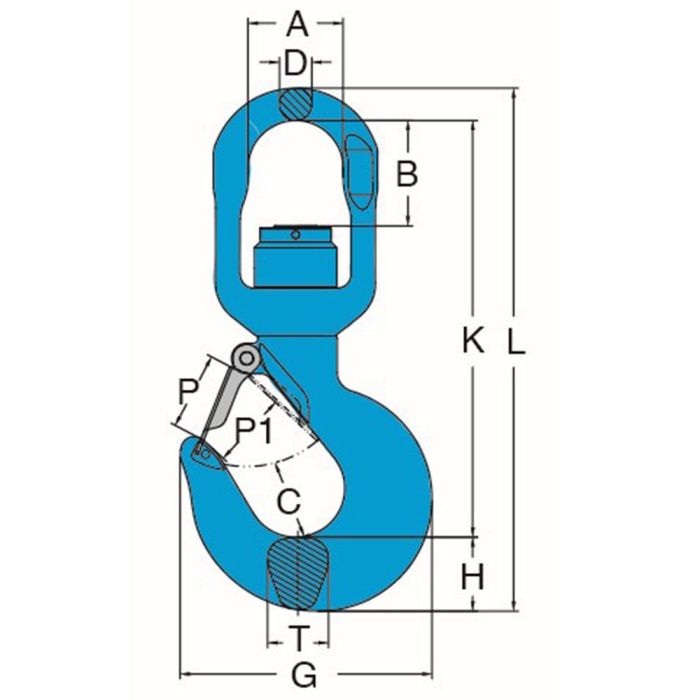

• (A): 36mm (1.42″)
• (B): 29mm (1.14″)
• (C): 26mm (1.02″)
• (D): 13mm (0.51″)
• (G): 90mm (3.54″)
• (H): 27mm (1.06″)
• (K): 145mm (5.71″)
• (L): 184mm (7.24″)
• (P): 24mm (0.94″)
• (P1): 20mm (0.79″)
• (T): 22mm (0.87″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
