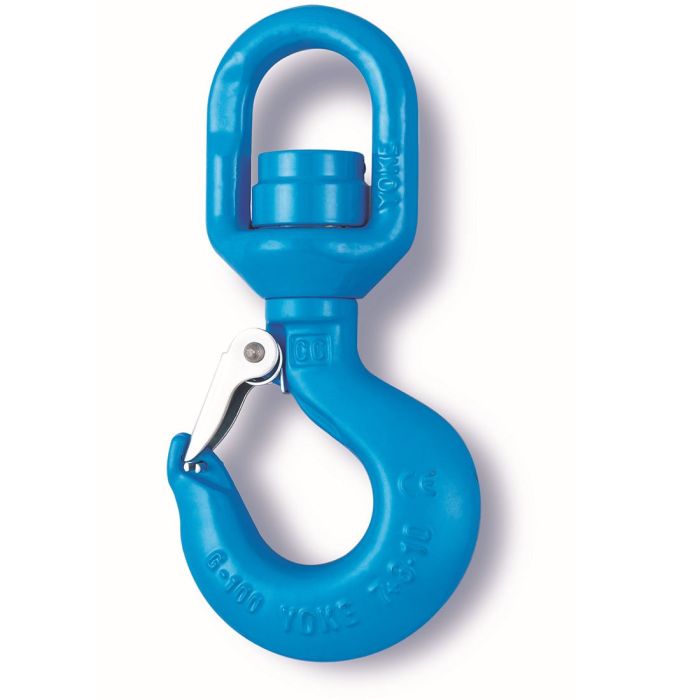

Yoke X-175N Grade 100 Swivel Bearing Hoist Hook 1″ (WLL 58,421 lbs)

Features:

• Built with ball bearing and enables full swivel feature under load
• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 26mm (1″)
• Working Load Limit (WLL): 26.50 tons (58,421 lbs)

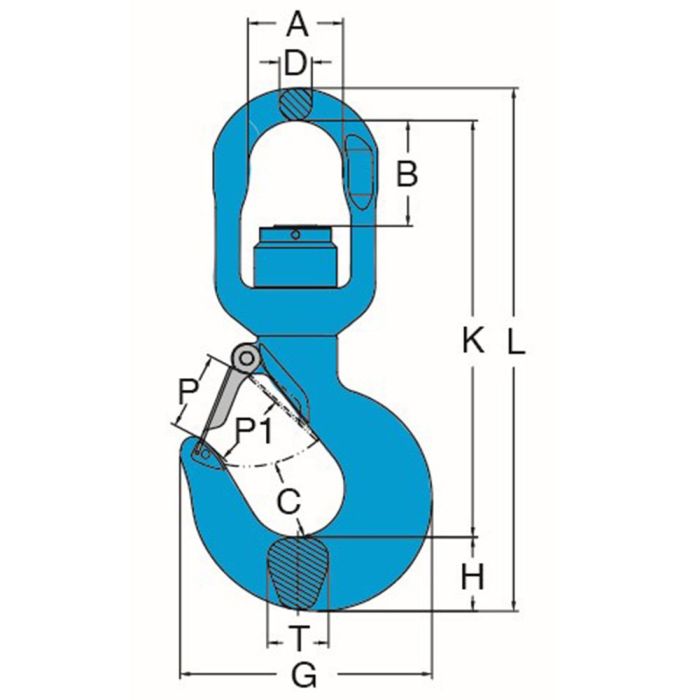

• (A): 123mm (4.84″)
• (B): 116mm (4.57″)
• (C): 71mm (2.80″)
• (D): 51mm (2.01″)
• (G): 277mm (10.91″)
• (H): 76mm (2.99″)
• (K): 469mm (18.46″)
• (L): 599mm (23.58″)
• (P): 86mm (3.39″)
• (P1): 81mm (3.19″)
• (T): 68mm (2.68″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
