Yoke X-175N Grade 100 Swivel Bearing Hoist Hook 3/8″ (WLL 8818 lbs)

Features:

• Built with ball bearing and enables full swivel feature under load
• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 10mm (3/8″)
• Working Load Limit (WLL): 4.00 tons (8818 lbs)

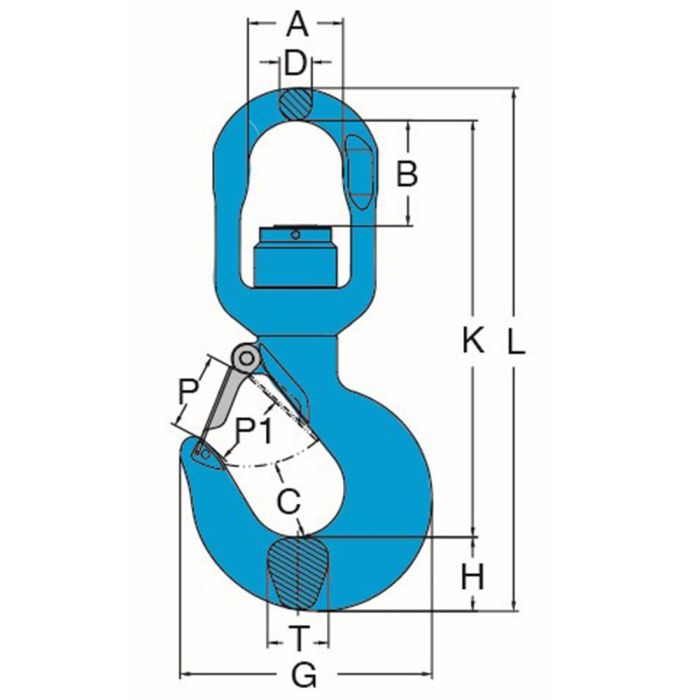

• (A): 41mm (1.61″)
• (B): 35mm (1.38″)
• (C): 29mm (1.14″)
• (D): 16mm (0.63″)
• (G): 102mm (4.02″)
• (H): 29mm (1.14″)
• (K): 172mm (6.77″)
• (L): 217mm (8.54″)
• (P): 28mm (1.10″)
• (P1): 25mm (0.98″)
• (T): 24mm (0.94″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
