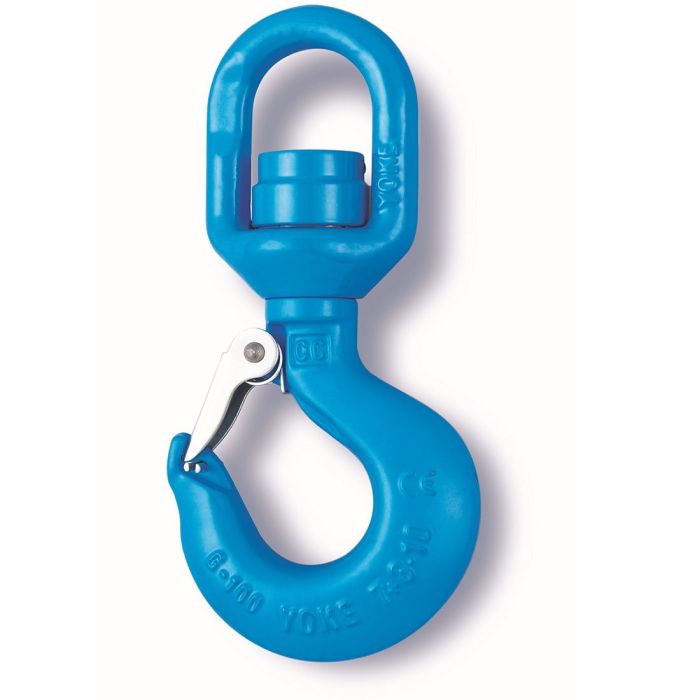

Yoke X-175N Grade 100 Swivel Bearing Hoist Hook 7/8″ (WLL 41,887 lbs)

Features:

• Built with ball bearing and enables full swivel feature under load
• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 2 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch

Specifications:

• Fits Chain Size: 22mm (7/8″)
• Working Load Limit (WLL): 19.00 tons (41,887 lbs)
• (A): 97mm (3.82″)
• (B): 96mm (3.78″)
• (C): 65mm (2.56″)
• (D): 33mm (1.30″)
• (G): 221mm (8.70″)
• (H): 64mm (2.52″)
• (K): 372mm (14.65″)
• (L): 471mm (18.54″)
• (P): 72mm (2.83″)
• (P1): 62mm (2.44″)
• (T): 56mm (2.20″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
