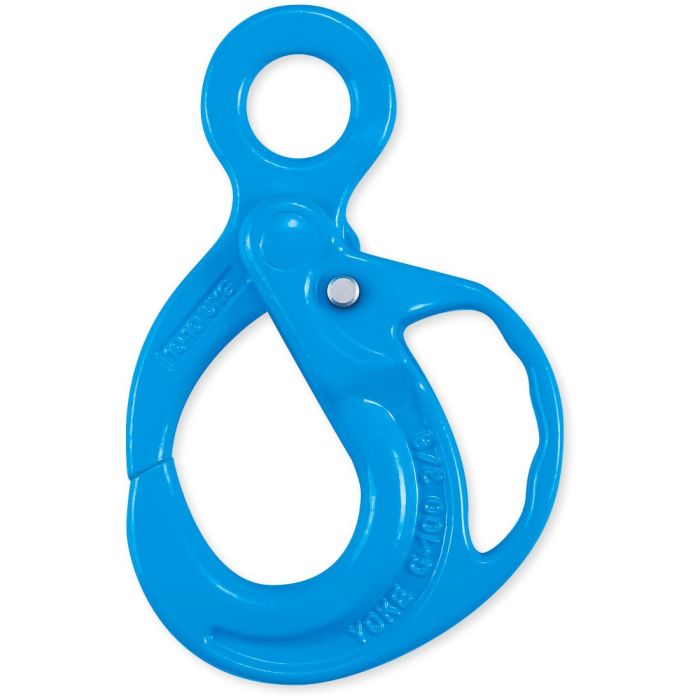

Yoke X-950 Grade 100 Alloy Eye Grip Safe Locking Hook 1/2″ (WLL 14,770 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Manufactured in accordance with EN 1677- 3, ASTM A952/A952M, DIN PAS 1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• ***American Patent***

Specifications:

• Fits Chain Size: 13mm (1/2″)
• Working Load Limit (WLL): 6.70 tons (14,770 lbs)
• (A): 40mm (1.57″)
• (D): 16mm (0.63″)
• (H): 39mm (1.54″)
• (K): 226mm (8.90″)
• (O): 64mm (2.52″)
• (P): 80mm (3.15″)
• (T): 34mm (1.34″)
• (W): 174mm (6.85″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
