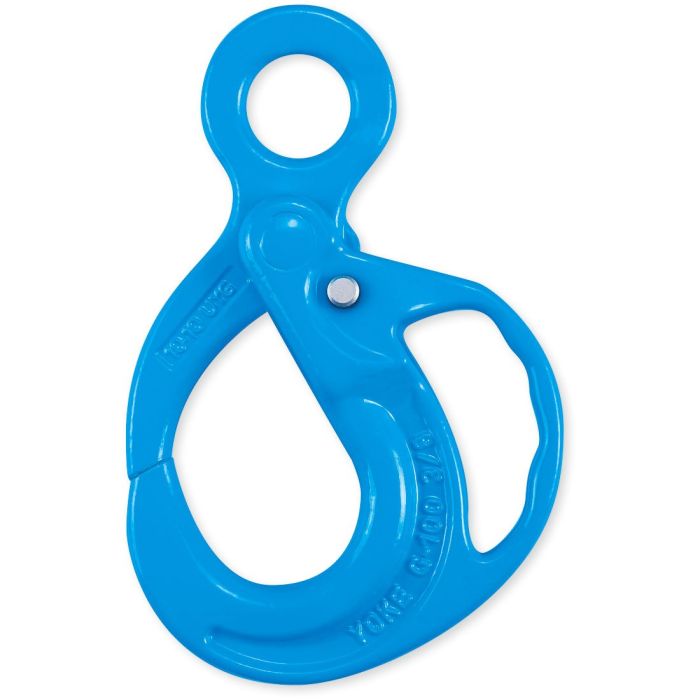

Yoke X-950 Grade 100 Alloy Eye Grip Safe Locking Hook 3/4″ (WLL 35,273 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Manufactured in accordance with EN 1677- 3, ASTM A952/A952M, DIN PAS 1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• ***American Patent***

Specifications:

• Fits Chain Size: 20mm (3/4″)
• Working Load Limit (WLL): 16.00 tons (35,273 lbs)

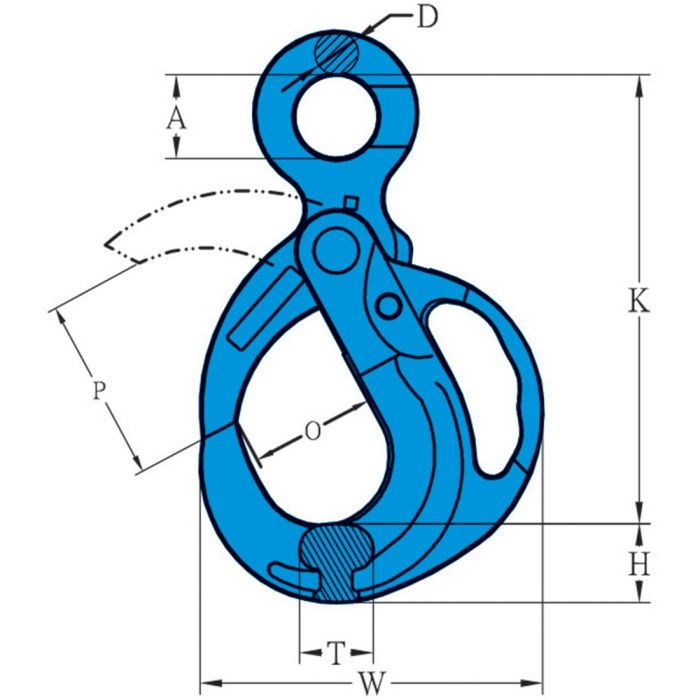

• (A): 62mm (2.44″)
• (D): 23mm (0.91″)
• (H): 55mm (2.17″)
• (K): 329mm (12.95″)
• (O): 92mm (3.62″)
• (P): 127mm (5.00″)
• (T): 54mm (2.13″)
• (W): 251mm (9.88″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
