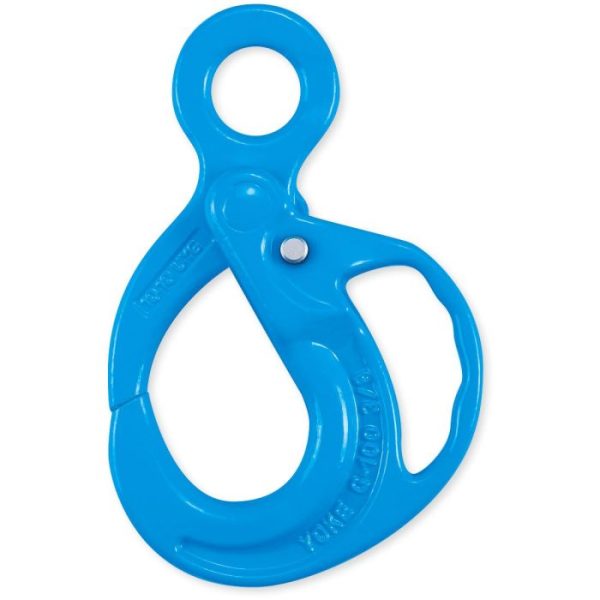

Yoke X-950 Grade 100 Alloy Eye Grip Safe Locking Hook 3/8″ (WLL 8818 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Manufactured in accordance with EN 1677- 3, ASTM A952/A952M, DIN PAS 1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• ***American Patent***

Specifications:

• Fits Chain Size: 10mm (3/8″)
• Working Load Limit (WLL): 4.00 tons (8818 lbs)

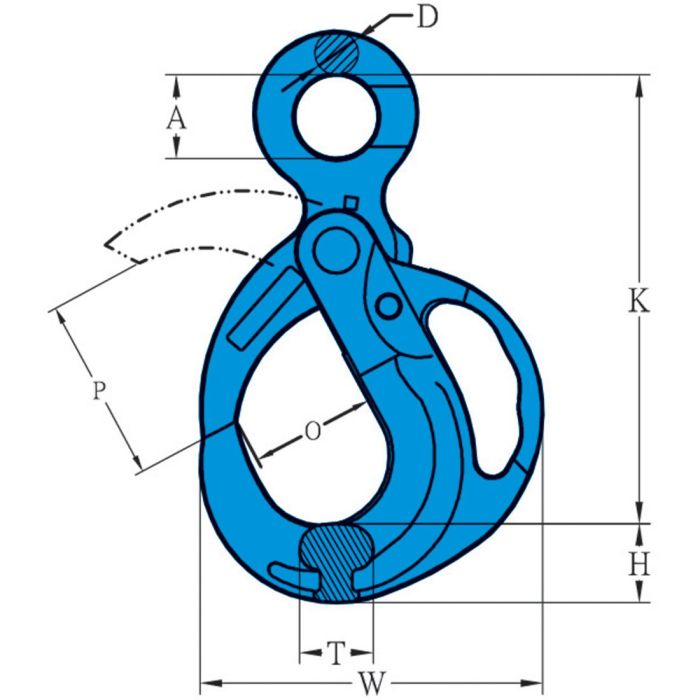

• (A): 33mm (1.30″)
• (D): 13mm (0.51″)
• (H): 31mm (1.22″)
• (K): 176mm (6.93″)
• (O): 49mm (1.93″)
• (P): 71mm (2.80″)
• (T): 27mm (1.06″)
• (W): 137mm (5.39″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
