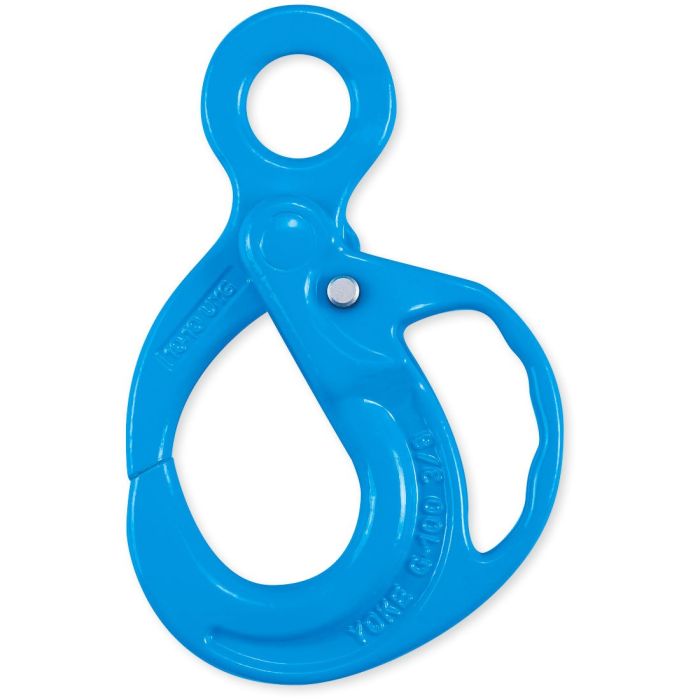

Yoke X-950 Grade 100 Alloy Eye Grip Safe Locking Hook 7/8″ (WLL 41,887 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Manufactured in accordance with EN 1677- 3, ASTM A952/A952M, DIN PAS 1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• ***American Patent***

Specifications:

• Fits Chain Size: 22mm (7/8″)
• Working Load Limit (WLL): 19.00 tons (41,887 lbs)
• (A): 70mm (2.76″)
• (D): 24mm (0.94″)
• (H): 59mm (2.32″)
• (K): 350mm (13.78″)
• (O): 98mm (3.86″)
• (P): 151mm (5.94″)
• (T): 56mm (2.20″)
• (W): 258mm (10.16″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
