- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with EN 1677-3
- Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
- Magnaflux crack detection is performed 100% on each batch
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

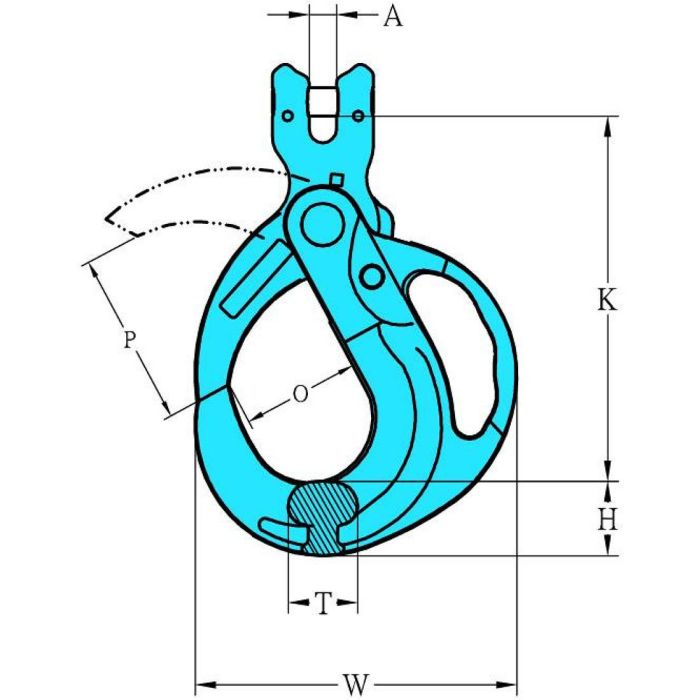

- Dimensions:
- A: 24mm (0.9″)
- H: 55mm (2.2″)
- K: 312mm (12.3″)
- O: 92mm (3.6″)
- P: 127mm (5″)
- T: 54mm (2.1″)
- W: 251mm (9.9″)
- Fits Chain Size: 20mm (3/4″)
- Working Load Limit: 16 tons (32,000 lbs)
